The invention of the corn harvester cannot be reduced to a single modern machine appearing at one moment. Corn harvesting technology developed through several stages, from hand picking and stalk cutting to mechanical corn pickers, corn binders, self-propelled harvesters, and modern combines.
However, Edmund W. Quincy of Illinois is generally credited with inventing the first recorded corn-harvesting machine. He received a patent for it in October 1850. His machine was an early field picker intended to remove ears from standing corn, but it was not yet practical enough for widespread commercial use.
This article explains who invented the corn harvester, how early machines worked, and how corn harvesting developed into today’s mechanized process.
Edmund W. Quincy is commonly recognized as the inventor of the first patented corn-harvesting machine. His 1850 design attempted to move through standing rows and mechanically pick ears from the stalks.
Quincy’s invention established an important starting point, but it did not operate like a modern corn combine. The machine was mechanically simple, difficult to use under changing crop conditions, and unable to achieve the reliability required for large-scale manufacturing.
Therefore, the most accurate answer is:
Edmund W. Quincy invented the first recorded corn harvester in 1850, but the modern corn harvester resulted from improvements made by many inventors and manufacturers over the following century.
The answer also depends on what is meant by “corn harvester.” A corn picker, corn binder, grain combine, and forage harvester collect different parts of the crop and developed along separate technological paths.
Before agricultural mechanization, farmers normally harvested corn manually. Workers walked through the field, removed the ears from the stalks, pulled back the husks, and placed the corn into baskets or wagons.
If the stalks were needed for animal feed, bedding, or storage, they also had to be cut and gathered into bundles. These bundles were often arranged into upright shocks so that the material could dry in the field.
Manual corn harvesting created several difficulties:
· It required substantial seasonal labor.
· The work was physically demanding.
· Harvesting proceeded slowly.
· Bad weather could delay field operations.
· Ears could be lost if harvesting was not completed on time.
· Large fields were difficult to finish within a suitable harvest window.
Corn presented a different engineering challenge from wheat and other small grains. Corn plants are taller, heavier, more widely spaced, and carry large ears at different heights. Stalks may also be bent, lodged, broken, or twisted by wind.
A successful corn harvester had to follow the rows, control the stalks, remove or collect the ears, and avoid excessive crop loss under inconsistent field conditions.
Edmund W. Quincy’s machine was designed as a field corn picker. Its basic objective was to travel over a row of standing corn and separate the ears from the stalks.
This was a significant idea because it attempted to replace one of the most labor-intensive parts of corn production. Instead of workers removing every ear by hand, the machine would perform the picking action mechanically.
However, the design faced practical limitations. Corn plants do not grow with perfectly uniform height, ear position, or stalk strength. An early machine that worked on upright, evenly spaced corn might struggle when the crop was lodged or when the ears developed at different heights.
Materials, power systems, bearings, chains, gears, and manufacturing accuracy were also less advanced than they are today. Quincy continued working on corn-picking ideas for many years, but his original machine did not immediately create a commercially successful harvesting industry.
His contribution was therefore foundational rather than final: Quincy established the concept and the first recorded patent, while later inventors made corn harvesting commercially practical.
Period | Development | Importance |
Before the 1800s | Corn was picked, husked, cut, and gathered manually | Harvesting depended heavily on human labor |
1850 | Edmund W. Quincy patented an early field corn picker | First recorded patent for corn-harvesting machinery |
1860s–1880s | Inventors developed machines for cutting, gathering, and shocking stalks | Introduced mechanical crop handling |
1890s | More practical corn binders entered production | Stalks could be cut and tied into bundles |
Early 1900s | Mechanical corn pickers became more workable | Machines began removing ears from standing stalks |
1920s | Commercial picker-husker designs improved | Picking and husking could occur in one operation |
1930s | Corn combines demonstrated more efficient one-pass harvesting | Picking, shelling, and cleaning began to merge |
1940s | Self-propelled harvesting equipment expanded | Machines no longer depended entirely on tractors or horses |
1950s–1960s | Specialized corn heads became widely used on combines | Shelled-grain harvesting became more efficient |
Late 20th century | Larger headers, better threshing, and improved operator controls appeared | Capacity increased while field loss decreased |
Modern period | Sensors, automation, row guidance, and yield monitoring became available | Harvesting became more precise and data-driven |
Early corn-harvesting inventors followed more than one design direction. Some machines attempted to pick ears while leaving the stalks in the field. Others cut the complete stalk and gathered it for livestock feed or later processing.
The field picker was intended to remove ears directly from standing plants. This approach eventually led to the mechanical ear-corn picker.
Developing a reliable picking mechanism was difficult. The machine had to grip or control the stalk without pulling the entire plant from the soil. It then had to detach the ear without dropping it or damaging too many kernels.
The snapping rolls used in later machines solved much of this problem. Counter-rotating rolls pulled the stalk downward while the larger ear remained above the gathering area and separated from the plant.
Corn binders followed a different path. These machines cut the stalks near the ground, gathered them, and tied them into bundles. The bundles could then be placed into shocks for field drying.
Corn binders reduced the labor required for cutting and bundling, but they did not necessarily separate the kernels or ears. Additional handling and processing were still required.
The development of pickers and binders shows why there is no single invention that completely represents the modern corn harvester. Each machine solved a different part of the harvesting process.
Although Quincy patented a corn-picking machine in 1850, several decades passed before mechanical corn pickers became practical for normal farm use.
The delay was caused by changing field conditions and limited mechanical technology. A successful machine needed to handle:
· Different row spacing
· Variable ear height
· Standing and lodged stalks
· Dry and wet crops
· Broken or weak stalks
· Uneven terrain
· Husks and crop residue
· Different operating speeds
By the late nineteenth and early twentieth centuries, improved gathering mechanisms, snapping rolls, conveyors, chains, and power systems made corn pickers more effective. Horse-drawn units gradually gave way to tractor-powered and tractor-mounted machines.
Commercially successful picker-huskers emerged during the 1920s. These machines could detach the ears and remove much of the husk during the same field pass. This reduced labor further, although the collected ear corn still normally required storage or separate shelling.
The corn picker usually collects whole ears, while a corn combine produces separated kernels. This distinction is central to the history of corn harvesting.
An early corn combine brought several operations together:
1. The header gathered the rows.
2. The machine removed the ears from the stalks.
3. The threshing system separated kernels from the cobs.
4. The cleaning system removed husks, cob pieces, and lighter residue.
5. Clean grain moved into an onboard tank or receiving container.
Efficient corn combines appeared during the early twentieth century, but adoption took time. Machine cost, grain moisture, storage conditions, field loss, and available tractor power all affected commercial acceptance.
As self-propelled combines and specialized corn heads improved, farms could harvest shelled grain in one continuous pass. This reduced separate picking, transporting, husking, and shelling operations.
Readers interested in the complete crop path can review this guide to how a modern corn harvester works.
Early corn harvesters focused on one or two mechanical operations. Modern machines coordinate several crop-handling systems at the same time.
Feature | Early corn harvester | Modern corn harvester |
Power source | Horses or basic mechanical drive | High-output diesel engine |
Main function | Picking ears or cutting stalks | Gathering, threshing, separating, cleaning, and unloading |
Row capacity | Usually one or two rows | Multiple rows, depending on machine size |
Crop feeding | Basic guides, reels, or conveyors | Controlled headers, gathering chains, and feeder systems |
Adjustment | Primarily manual | Mechanical, hydraulic, electronic, or automatic |
Operator environment | Exposed riding or walking position | Enclosed cab with centralized controls |
Loss monitoring | Visual field inspection | Sensors and operator displays may be available |
Output | Whole ears or bundled stalks | Clean grain, whole ears, or chopped forage |
Field data | None | Yield, moisture, location, and operating data may be recorded |
The basic problem remains the same: collect the crop with minimal loss. The difference is that modern equipment performs the task with greater capacity, control, and consistency.
Main Types of Modern Corn Harvesters
The term “corn harvester” now covers several different machines. The correct type depends on the intended final product.
Corn Picker
A corn picker removes whole ears from the standing plants. Some models also remove the husks. This type may suit farms that store ear corn or process the ears separately.

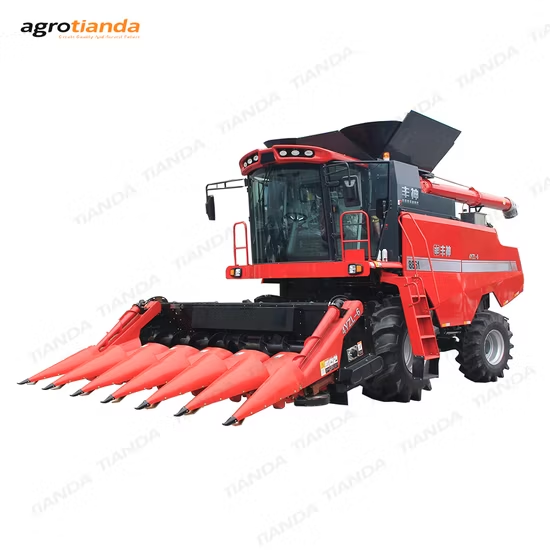

Combine Harvester with Corn Header
A combine fitted with a corn header gathers the crop, removes the ears, separates the kernels, cleans the grain, and stores it onboard. It is commonly used when the required output is shelled grain.
Forage Harvester
A forage harvester collects and chops most of the plant, including stalks, leaves, ears, and kernels. The chopped material is used primarily for silage rather than dry grain.
Tractor-Mounted Corn Harvester
A mounted or trailed machine uses a tractor as its power source. This arrangement can reduce the initial equipment investment for smaller farms that already own a compatible tractor.
Self-Propelled Corn Harvester
A self-propelled harvester has its own engine, transmission, operator station, and harvesting system. It generally offers greater capacity and easier operation for larger farms or agricultural contractors.
Modern corn harvesters look very different from Quincy’s 1850 design, but they continue pursuing the same goal: reducing the labor, time, and crop loss involved in bringing corn from the field.
A current corn grain harvester may include:
· Row dividers that guide stalks into the header
· Gathering chains that control crop movement
· Snap rolls that pull stalks downward
· Deck plates that retain the ears
· A feeder system that transfers crop material
· A rotor or cylinder that separates kernels
· Concaves and sieves that separate material
· A cleaning fan that removes light residue
· A grain tank and unloading auger
· Residue choppers and spreaders
· Header-height and row-guidance systems
· Moisture and yield monitoring
These features did not originate from one inventor. They developed through repeated testing, patenting, manufacturing, and field experience across many generations.

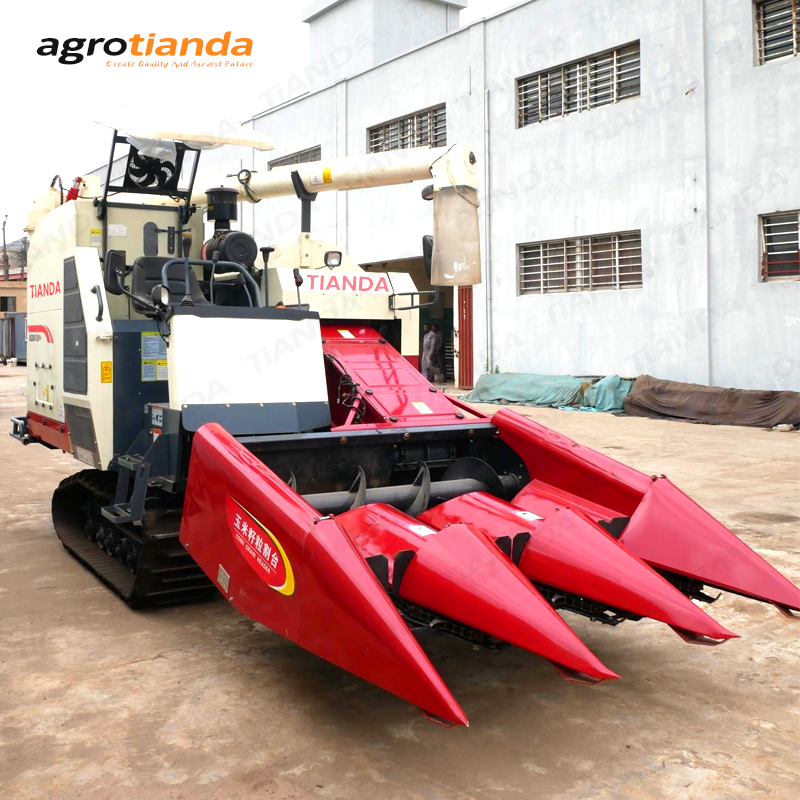

AGROTIANDA’s 110HP corn and maize harvesting machine represents the modern stage of this development, where engine power, crop gathering, field mobility, and harvesting capacity are integrated into one agricultural machine.
Mechanized corn harvesting changed more than the speed of fieldwork. It influenced how farms organized labor, selected crop varieties, planned storage, and managed larger areas.
Important effects included:
· Lower manual labor requirements: Fewer workers were needed to pick and handle the crop.
· Faster harvesting: Farmers could complete more hectares during a limited harvest window.
· Larger practical farm areas: One operator could manage more land with mechanical equipment.
· More consistent crop handling: Properly adjusted machines reduced the variation associated with manual work.
· Integrated processing: Picking, husking, shelling, and cleaning gradually became part of one operation.
· Improved logistics: Grain tanks, unloading systems, transport equipment, dryers, and storage facilities developed around higher harvest capacity.
· Greater specialization: Different machines emerged for grain corn, ear corn, seed corn, and silage.
The invention also created new management requirements. Farmers needed to maintain machinery, control grain moisture, coordinate transport, and adjust harvesting systems for crop conditions.
No. Quincy deserves recognition for the first recorded patent for corn-harvesting machinery, but he did not independently develop every system used in a modern machine.
Later inventors improved:
· Stalk-cutting mechanisms
· Gathering dividers
· Ear-snapping systems
· Husking rolls
· Corn binders
· Conveyors
· Threshing cylinders
· Cleaning systems
· Self-propelled chassis
· Interchangeable headers
· Hydraulic controls
· Electronic sensors
The modern corn harvester is a cumulative invention. Quincy began an important recorded chapter in 1850, while later innovators turned the original concept into reliable commercial equipment.
Conclusion
Edmund W. Quincy is generally credited with inventing the first corn harvester because he received the first recorded patent for a corn-harvesting machine in October 1850. His field picker attempted to remove ears from standing corn and established the foundation for later mechanical development.
However, Quincy did not invent the modern corn combine in its present form. Corn cutters, binders, picker-huskers, self-propelled machines, specialized corn headers, threshing systems, and electronic controls emerged through many decades of improvement.
The history of the corn harvester is therefore both the story of one pioneering inventor and a continuing process of agricultural engineering.
Who invented the first corn harvester?
Edmund W. Quincy of Illinois is generally credited with inventing the first recorded corn-harvesting machine. He received a patent for his field-picker design in October 1850.
When was the corn harvester invented?
The first recorded corn-harvesting machine was patented in 1850. Practical commercial corn pickers and combines developed later, particularly from the late nineteenth century through the first half of the twentieth century.
Did Edmund W. Quincy invent the modern combine?
No. Quincy developed an early machine intended to pick ears from standing corn. The modern combine, which gathers, threshes, separates, cleans, and stores grain, resulted from later inventions and improvements.
What did the first corn harvester do?
Quincy’s early machine was essentially a field picker designed to travel through standing corn and remove ears from the stalks. It did not perform all the functions of a modern corn combine.
What is the difference between a corn picker and a corn combine?
A corn picker normally collects whole ears, sometimes with a husking function. A corn combine separates kernels from the cobs, cleans the grain, and stores it during the same field pass.
When did corn harvesting become widely mechanized?
Mechanical corn harvesting expanded during the early twentieth century as picker-huskers became more reliable. Adoption increased further when tractors, self-propelled machines, and specialized corn heads became more practical.
Can modern corn harvesters collect different forms of the crop?
Yes. Different machines can collect whole ears, shelled grain, or chopped plant material for silage. Buyers must choose the machine according to the required output, farm size, crop conditions, and downstream storage or processing system.
