In heavy-duty farm tractors, chassis strength and high torque reserve are two foundational engineering aspects that dictate how much load a tractor can pull, how long it will last under punishing field conditions, and how efficiently it operates across varying soil densities.
Below is a detailed technical breakdown of why these two factors matter so much in modern agricultural operations.

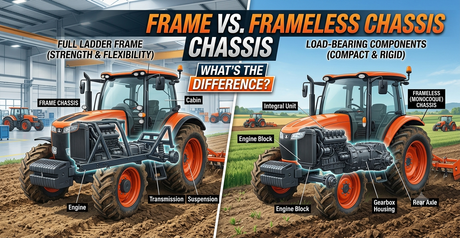

The tractor chassis acts as the structural skeleton supporting the engine, transmission, front/rear axles, and heavy mounted implements. Modern field applications—such as subsoiling, deep ripping, and pulling heavy multi-disc harrows—exert massive torsional and bending forces on the vehicle's frame.
Heavy soil resistance creates uneven dynamic loads on the left and right draft links. A heavy-duty cast or reinforced steel frame prevents the chassis from twisting or flexing, which protects the internal driveshaft and transmission housing from misalignment and premature wear.
Heavy implements mounted on the rear 3-point hitch exert a leveraging force that lifts the front wheels. A heavy-duty chassis provides the structural base to balance front-to-rear weight distribution, maintaining front-wheel ground contact for steering control and 4WD traction.
Modern tractors often carry heavy front-end loaders, ballast weights, or front-mounted implements alongside heavy rear tools. A robust chassis ensures the front axle mounts and planetary gears can absorb severe shock loads without structural fatigue or cracking.
While horsepower determines how fast a tractor can perform work, torque is the actual turning force that pulls heavy loads through the soil. Torque Reserve (also known as torque rise) refers to the percentage increase in engine torque output as the engine RPM drops under a sudden, heavy load.
Key Benefits of a High Torque Reserve:
Field soil density changes constantly across a single acre (e.g., transitioning from loose loam to dense clay). When a plow hits hard soil, engine RPM drops. A high torque reserve automatically increases the pulling force as RPM drops, allowing the tractor to power through tough spots without stalling or forcing the operator to downshift.
Tractors with high low-end torque can pull heavy implements at lower, more efficient engine speeds ("Lugging Power"). Operating at optimal RPMs lowers fuel consumption per acre and keeps engine coolant and hydraulic oil temperatures lower.
High torque reserve provides smooth power delivery under variable loads, reducing shock loading on the clutch, transmission gears, and final drives compared to abrupt downshifting or high-RPM engine surging.
High engine torque is only useful if the tractor's chassis and drivetrain can effectively transfer that energy to the ground without slipping or breaking:
Minimizing Power Loss: A rigid, heavy-duty chassis ensures that all mechanical torque is transferred directly to the wheels and PTO rather than being absorbed by structural flex.
Preventing Soil Compaction & Wheel Slip: When paired with a heavy-duty chassis that maintains proper axle weight balance, high torque enables efficient ground engagement, reducing excessive wheel slip that damages soil structure and wastes fuel.
