The development of harvesting technology reflects one of the most significant transformations in agricultural history—from simple manual labor to highly integrated mechanical systems. Early farmers relied on basic tools such as sickles and flails, performing reaping and threshing as separate, labor-intensive tasks. Over time, these processes evolved into independent machines, paving the way for greater efficiency. A major breakthrough came in 1835, when Hiram Moore introduced the revolutionary idea of combining reaping and threshing into a single machine. This innovation marked the birth of the combine harvester and fundamentally reshaped agricultural production. Building on this historical progression, this discussion explores the evolution of harvesting methods, the meaning behind the term “combine,” the origin of the first machine, and the key systems that make up a modern combine harvester.
The journey from back-breaking manual labor to mechanized agriculture was not a single invention, but a slow revolution driven by labor shortages and the need for efficiency. This transition can be broken down into three key stages.
Harvesting has been done physically for thousands of years using a sickle. A sickle required the person using it to be bent over to get the grain cutting one handful of stalks at a time. This method is very slow and requires huge effort to do the work. A scythe allows a worker to stand up and cut the grain using a sweeping motion, since it has a long handle and a straight blade. This allows one person to harvest a larger area in one day however multiple people are still needed behind the person cutting the grain with a scythe to bundle and tie the grain after it has been cut.
In the 19th Century, machines became numerous that performed single manual tasks by replacing some of that manual labor; however, many of these machines operated independently.
Mechanical Reapers: One example of these machines was the mechanical reaper, invented by people like Cyrus McCormick during the 1830s; it would use horses to pull it through the field and cut down the grain while leaving it in rows that would have to be bundled up and threshed by hand.
Threshers：Standalone had been developed simultaneously for grain separation by automating the process. In the beginning these were powered = horse treadmills. Later, steam engines powered them. To use the threshers, farmers would bring their harvested sheaves to the thresher and thresher would beat the grain using a rotating drum. This was moving in the right direction, but created a "bottleneck" in that the grain needed to be cut and gathered in the field by hand or reaper prior to being threshed.
The final breakthrough was the "Combine" (short for combined harvester), which integrated cutting and threshing into a single machine. Early combines, pulled by teams of horses or tractors, could move through a field, cut the crop, and thresh it on the go, discharging clean grain into a wagon. This eliminated the need for binding and separate threshing, drastically reducing the time and labor required.
The Key Leap: The transition was complete when the internal combustion engine provided a portable, powerful power source. This allowed the combine to become a self-propelled machine (like the modern harvester), truly freeing agriculture from the limits of human and animal muscle power.
The name Combine did not come about simply by being chosen randomly; this piece of equipment is so named because its design represents perhaps one of the greatest achievements of agricultural engineering ever made. Prior to this invention, agriculture experienced one of the most demanding harvest seasons due to many people working with multiple types of equipment over long periods. The harvester received its "Combin*e" name because it combined five separate agricultural processes into one continuous process.
The Five Operating Procedures Integrated With "the Combine".
The process starts at the Header. The reel rotates like a gentle hand, pulling the crop towards the cutter bar, as the combine moves forward. A set of reciprocating blades then cuts the stalks off at the base, like one large pair of scissors.
Once the crop has been sliced, the next step is to transfer it from the field to the machine system. The spinning auger, which looks like a big screw, takes all shredded plants out of the huge head and pushes them into a center pit, after which a conveyor belt referred to as the feeder house lifts the stuff into the main section of the machine.
In these situations, the magic works. The high-velocity threshing drum or rotor inside the machine - hits and crushes the plant material. The mechanical friction causes a shaking action that separates the grains (seeds) from their husks and stalks. Nearly all the grain falls through a robust metal grate designed for heavy-duty use, also called the concave, and the straw continues to move towards the rear of the machine.
The material falling through the concave isn't just pure grain; it’s a mix of seeds, dust, and broken husks (chaff). The combine uses a cleaning shoe consisting of vibrating sieves and a powerful fan. The fan blows a stream of air through the falling mixture—the heavy grains drop through the sieves, while the light chaff and dust are literally blown out the back of the machine.
Finally, the clean grain is transported by an elevator to the onboard grain tank. Once the tank is full, a large folding pipe called an unloading auger swings out, using a giant screw to spiral the grain out of the tank and into a waiting trailer or truck in a matter of seconds.
In 1835, Hiram Moore, an American inventor from Michigan, introduced a revolutionary concept that transformed agriculture by creating the first machine to “combine” harvesting processes. Before his invention, farmers had to cut grain by hand and then thresh it separately, a slow and labor-intensive process that could take weeks. Moore’s machine integrated these two steps—reaping and threshing—into a single continuous operation, allowing grain to be cut and processed in one pass through the field. Powered by teams of horses and built with complex internal mechanisms, his early combine was large and imperfect, but it proved that mechanized, continuous harvesting was possible. This breakthrough marked a shift from manual, step-by-step labor to efficient machine-driven farming, laying the foundation for the modern combine harvester used worldwide today.

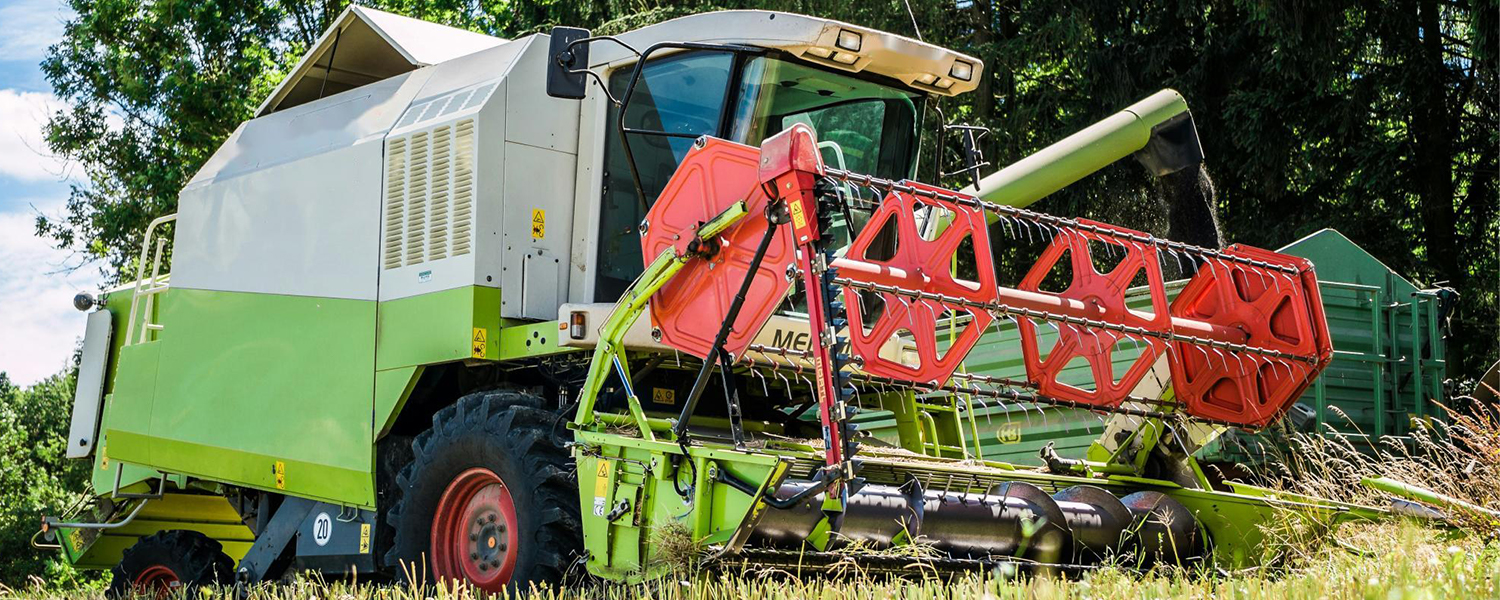

The header is the wide, front-mounted attachment that makes first contact with the crop. It determines the machine's "swath" (width of cut).
The Reel: Large, rotating bars with metal teeth that gently pull the standing crop toward the blades.
The Cutter Bar: A high-speed reciprocating knife (moving back and forth) that shears the stalks at the base like heavy-duty scissors.
The Auger: A large spinning screw that funnels the cut material from the wide edges of the header into the center intake.
Think of this as the conveyor belt that bridges the gap between the field and the machine's internal processor.
Function: Once the material is gathered in the center of the header, a heavy-duty chain-and-slat conveyor (the feeder house) pulls the crop upward.
The Logic: It ensures a steady, pressurized flow of material into the threshing system. If the flow is too fast or too thick, the machine "slugs" (clogs), so this system acts as a crucial regulator.
This is the most aggressive part of the machine, where the grain is actually freed from the plant.
The Rotor/Cylinder: A massive, high-speed spinning drum fitted with rasp bars or spikes.
The Concave: A curved, heavy metal grate positioned just below the rotor.
How it works: The crop is rubbed and beaten between the spinning rotor and the stationary concave. The friction shakes the heavy grains loose, allowing them to fall through the holes in the concave, while the long straw continues to move toward the back.
Grain falling from the threshing system is still mixed with "chaff" (bits of straw, husks, and dust). The cleaning shoe uses two forces to purify the grain:
The Sieve (Shaker): Multiple layers of vibrating metal trays with adjustable openings. The vibration keeps the material moving and allows grain to fall through while scalping off larger debris.
The Cleaning Fan: A powerful fan blows a targeted stream of air upward through the sieves. Because chaff is lighter than grain, the air lifts the "trash" and blows it out the rear, leaving only clean grain to drop to the bottom.
This is the final logistics phase where the product is handled for the market.
The Grain Tank: A massive hopper on top of the machine that can hold thousands of pounds of clean grain.
The Unloading Auger: A long, hydraulic folding arm (the "spout"). Inside is a large screw-conveyor that can empty the entire grain tank into a moving grain cart or truck in under two minutes—often while the combine is still moving!
Conclusion
The combine harvester represents a major leap in agricultural innovation, evolving from manual labor to fully integrated machinery. From early tools to **Hiram Moore’s** 1835 breakthrough, the key advancement was combining multiple processes into one continuous system. Today’s machines build on this idea, allowing a single operator to harvest efficiently at scale—demonstrating how engineering has transformed farming and boosted global food production.
