At first glance, a combine harvester moving across a field doesn’t seem that complicated. But in reality, it’s doing several jobs at once—cutting, threshing, separating, and cleaning—all in one continuous pass. This article takes a closer look at how the process works, how one machine can handle different crops, and what challenges come with using it.
Watching a combine Harvester in a field looks simple, but inside, it is performing a high-speed mechanical ballet. The entire journey from "standing plant" to "clean grain" takes less than 10 seconds.
Everything starts at the Header — the machine's "mouth."
- The Reel: This giant rotating component gently pushes the standing stalks toward the blades.
- The Cutter Bar: A row of teeth zips back and forth at high speed, shearing the stalks near the ground.
- The Auger: This large spinning screw funnels all the cut material into the center and pushes it into the Feeder House (the machine's "throat").
Once the crop is "swallowed," it enters the Threshing Drum or Rotor — the most violent part of the process.
- The machine beats and rubs the plants against a heavy metal grate called a Concave.
- This friction shakes the heavy grain seeds loose from the straw.
- The seeds fall through the holes in the grate, while the long, light straw is pushed further back.
The grain that falls through isn't pure yet — it's mixed with chaff (tiny bits of husk and dust). The machine uses two clever physics tricks to clean it:
- Gravity & Vibration: The mix falls onto a series of Sieves that shake back and forth. Grain is small enough to fall through the holes, but larger debris stays on top.
- Wind Power: A massive Cleaning Fan blows a strong blast of air across the sieves. Because chaff is lighter than grain, the wind carries the trash out the back of the machine.
Any remaining fine debris is blown away. Only pure, clean grain passes through the final screen, ensuring nothing but high-quality grain reaches the tank.
- The clean grain is now moved by a vertical elevator into the Grain Tank on top of the machine.
- When the tank is full, a giant folding pipe called the Unloading Auger swings out.

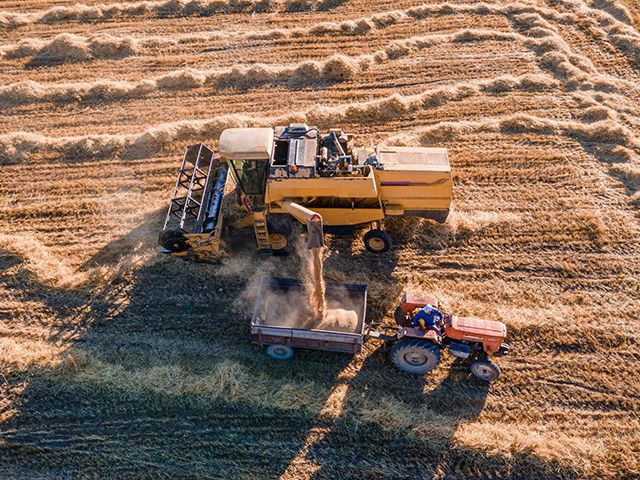

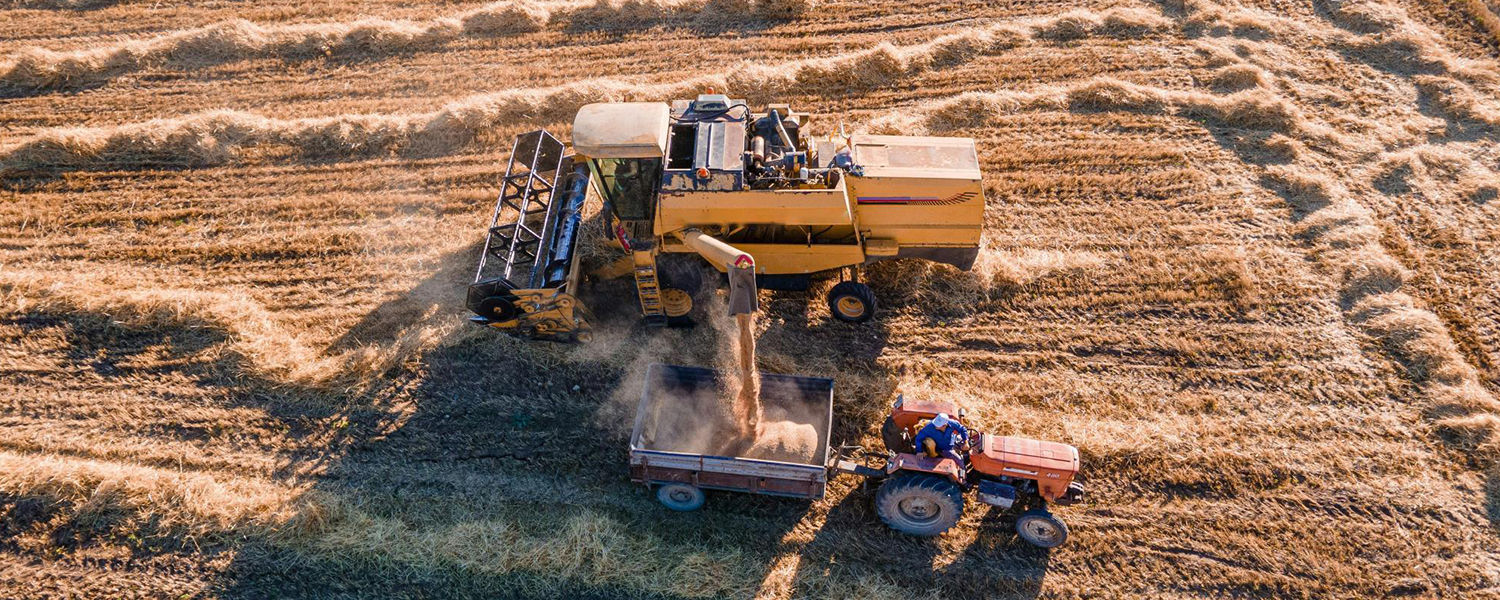

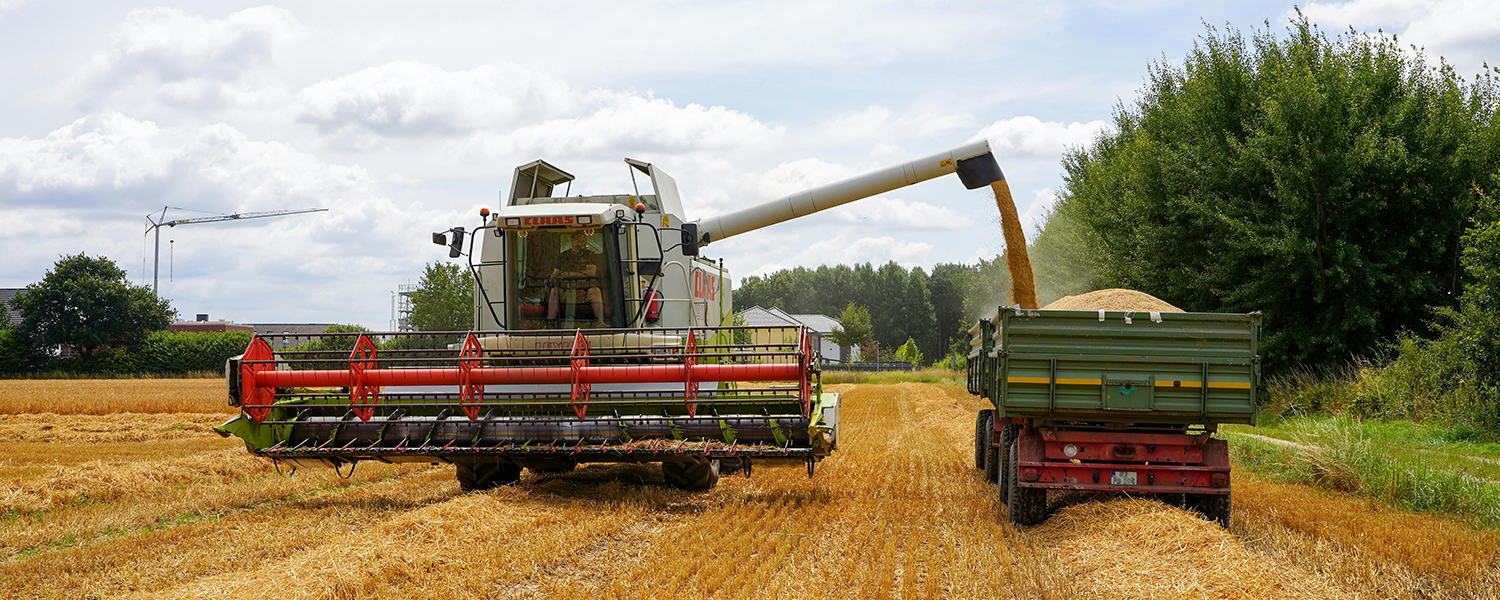

- It uses a powerful internal screw to shoot the grain into a grain cart or truck — often while the combine is still moving across the field!
The leftover straw isn't wasted. At the very back:
- A Straw Chopper shreds the stalks into tiny pieces.
- A Spreader flings them evenly back onto the soil.
This recycled plant material acts as natural fertilizer for next year's crop.
After threshing, the material is still a mix of grain, chaff, and bits of straw. The cleaning system separates these using a combination of sieves and airflow, based on differences in size and weight.
First, the mixture passes over a set of vibrating sieves. The top sieve catches larger pieces like straw, while smaller material falls through. Then the bottom sieve, with tighter openings, allows clean grain to pass while holding back anything slightly larger, such as unthreshed pieces.
At the same time, a fan blows air through the material. The lighter chaff and dust are lifted and carried out the back of the machine, while the heavier grain drops down into the tank. The airflow needs to be set correctly—too weak leaves impurities behind, too strong can carry grain away.
These two actions work together. The sieves keep the material spread out and moving, and the airflow removes the lighter parts as they fall. In simple terms, the sieves handle size, and the fan handles weight, leaving clean grain ready for storage.
A modern combine harvester isn’t just a one-trick pony; it is a modular processing platform. The secret to its "omnivore" ability to handle corn, soybeans, and wheat lies in a two-part harmony: Interchangeable Headers and Adaptive Internal Presets.
Since every crop grows differently, the "mouth" of the machine must be swapped to match the plant’s physical structure. This is the Hardware solution.
Corn Headers (The "Snappers"): Unlike wheat, corn stalks are not processed. These headers feature stunted snapping rolls that pull the stalk downward while stripper plates pop the ear (cob) off. The cob enters the machine, while the rest of the plant stays in the dirt.
Flex Headers (The "Ground-Huggers"): Soybeans grow pods very close to the soil. These headers have a flexible floor that floats and undulates with the terrain like a wave. This allows the blades to shave the ground without digging into the dirt, ensuring not a single pod is left behind.
Platform Headers (The "Generalists"): Used for wheat and rice, these use a high-speed Reel and Sickle Bar to cut the entire plant and sweep it into the intake.
Once the crop is inside, the machine must change how it "chews." This is the Software & Mechanical solution. Modern operators can recalibrate the entire "digestive tract" from a touchscreen in the cab:
Feature | Corn (Heavy & Tough) | Soybeans/Wheat (Small & Fragile) | The Logic |
Rotor Speed | Low (300-500 RPM) | Medium-High (500-800 RPM) | Low speed prevents "cracking" large corn kernels. |
Concave Gap | Wide (30-45mm) | Narrow (15-25mm) | Must match the diameter of the crop to create friction. |
Fan Speed | High Blast | Moderate Blast | Corn debris is heavy and needs a "hurricane" to blow it out. |
Sieve Opening | Wide | Tight | Prevents tiny seeds like wheat from falling through with trash. |
The combine harvester is an impressive piece of engineering—but it doesn’t come without trade-offs. Bringing such a large, complex machine into farming introduces real challenges, especially in terms of cost, environmental impact, and changes to rural life.
For many farms, a combine is the biggest investment they’ll ever make, often costing hundreds of thousands of dollars. The challenge is that it’s only used for a short harvest season each year, yet still requires ongoing maintenance, storage, and financing. For mid-sized farms, this can create financial pressure, especially in years when crop prices are low. Repairs can also be an issue. Modern combines rely heavily on electronics and software, so even small problems may require dealer support, leading to delays during critical harvest periods.
Combine harvesters are heavy machines, and their weight can affect the land they operate on. Repeated passes across a field may lead to soil compaction, reducing the soil’s ability to hold air and water. Over time, this can make it harder for roots to grow and for crops to reach their full potential. Crop residue is another consideration. While spreading straw back onto the field can return nutrients to the soil, too much residue can interfere with planting and may create conditions for pests or disease if not managed properly.
The use of combines has also changed the nature of farm work. Tasks that once required many workers can now be handled by a single machine, reducing the need for manual labor. At the same time, operating modern equipment requires new skills, including understanding digital systems, sensors, and machine settings. This shift can be challenging for some farmers, while younger workers with these skills may choose opportunities outside agriculture. As a result, many rural communities are seeing fewer people involved in farming, and the structure of agricultural life continues to evolve.
Conclusion
Combine harvesters have changed farming by making harvesting faster and far less labor-intensive. What once took many people days to finish can now be done by one machine in a short time. At the same time, issues like cost, soil impact, and changing labor needs show that efficiency comes with trade-offs, and the way these machines are used will continue to evolve.
