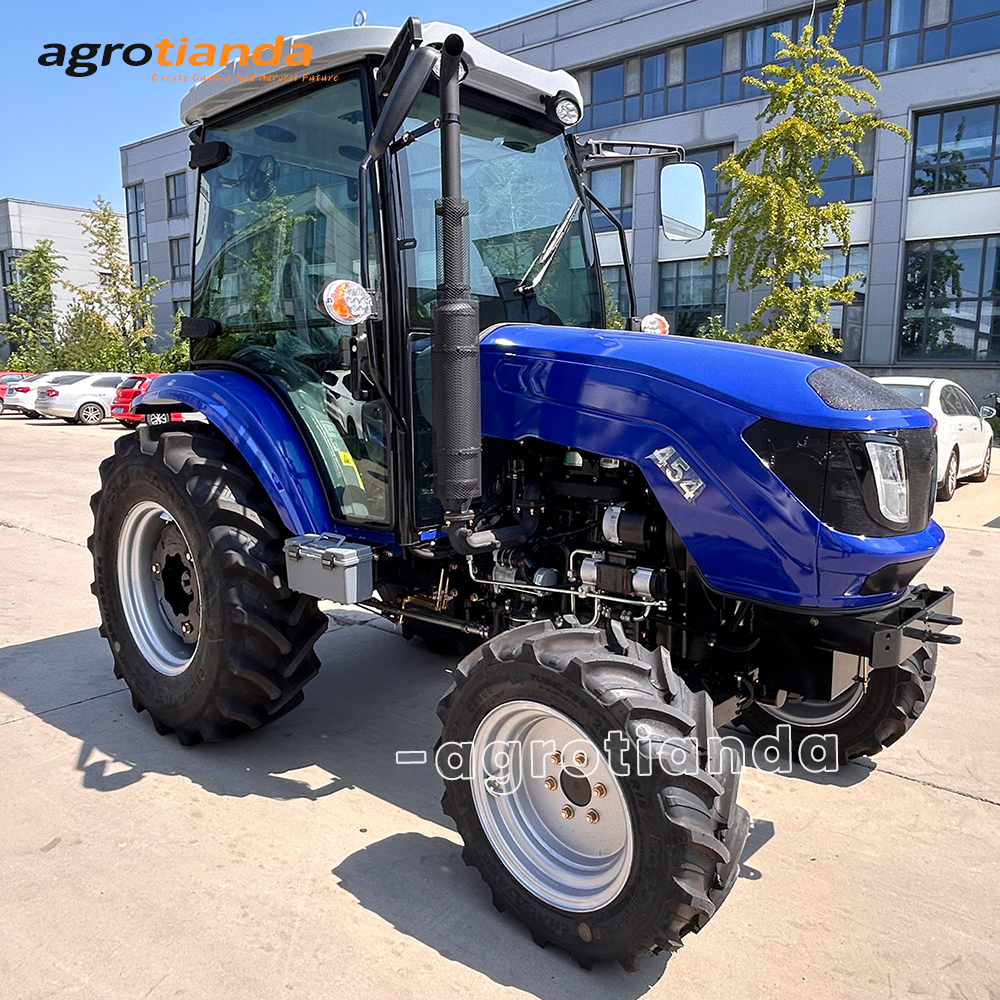

50HP 4WD Blue Farm Tractor with Cabin

Agrotd504 is a 50HP 4WD wheel tractor designed for farm and garden use. It is powered by a 4-cylinder vertical water-cooled diesel engine and features an 8+8 gearbox with shuttle shift. With a structural weight of 1600kg, Category 3 three-point suspension, and CE/ISO certification, it offers a service life of 6-10 years.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
详情 (2) 详情 (3) 详情 (5)
详情 详情 (6) 详情 (4)


Model NO.

agrotianda504

Type

Wheel Tractor

Usage

Farm Tractor, Garden Tractor

Certification

ISO, SGS

Drive Wheel

4WD

Emission Standard

Euro II

Fuel

Gas / Diesel

Service Life

6-10 Years

Size

Small

Color

Blue

Condition

New

Power

50HP

Engine Brand

4 Cylinder, Diesel, Vertical, Water Cooling

Weight

1600kg

Transport Package

Nude Packing

Specification

4000 x 1600 x 2400mm

Trademark

Agrotianda

Origin

China

HS Code

8701901190

Production Capacity

10000unit/Year


Specification for agrotianda Tractor

Model

TE-504

TB-754

TB-904

4X-1004

TD-1204

TD-1404

Engne Model

XINCHA

XINCHAI

XINCHAI


QUANCHAI

SHANG CHAI

SHANG CHAI

Type

4-Cylinder Vertical,water cooled,4 stroke cycle

6-Cylinder Vertical,water cooled,4 stroke cycle

Construction Mass(kg)

1800

2900

2900

3700

3900

3900

Wheel Bass(mm)

1800

2010

2052

2052

2340

2340

Min Ground Clearance (mm)

308

308

375

375

400

400

Rated Power(kw/hp)

36.7/50

55.1/75

66.2/90

73.5/100

88.2/120

102.9/140

Rated Speed (rpm)

2400

2400

2400

2400

2400

2200

Gear box

8+8

12+12

12+12

12+12

12+12

16+8

Brake

Disc type

Disc type

Disc type

Disc type

Disc type

Disc type

3-Point Suspension

Category:3

Category:3

Category:3

Category:3

Category:3

Category:3

Rotating Speed (rpm)

540/1000

540/1000

540/1000

540/1000

540/1000

540/1000

Production Process and Flow


Packaging and Shipping


OEM/ODM Customization Available

Color

Blue, yellow, red, orange, green, and any custom color of your choice.

Engine Brand

Quanchai,Xinchai,Yuchai,YTO,Shangchai,Yunei

Rated Power (hp)

50-240hp

Tire Tape

Dryland, Paddy Field, Radial (European Standard)—customizable upon request.

Logo

Your exclusive logo can be applied to the tractor body or hood.

1. Exceptional Power & Efficiency

Engineered for Performance: Equipped with a high-torque, low-fuel-consumption diesel engine (matching brands like YTO/Quanchai), ensuring powerful output for heavy-duty plowing, tilling, and hauling.

Optimized Transmission: The 8+2 or 12+12 shuttle shift transmission provides versatile speed options, allowing operators to match the perfect pace for different soil conditions and implements.

2. Superior 4WD Traction & Stability

All-Terrain Mastery: The robust 4-Wheel Drive (4WD) system delivers maximum traction on muddy, hilly, or uneven terrains, significantly reducing wheel slippage and increasing productivity.

High Ground Clearance: Designed specifically for rugged environments, the chassis offers excellent clearance to protect the underbody while navigating deep furrows or obstacles.

3. Built for Durability

Heavy-Duty Chassis: Reinforced structural components ensure the tractor can withstand the rigors of long-term, high-intensity field operations.

Reliable Hydraulic System: Features a dual-way hydraulic output, making it compatible with a wide range of implements (plows, trailers, seeders, etc.) with smooth and precise control.

4. Operator-Centric Design

Ergonomic Cabin: Available with a comfortable, wide-view cabin or a foldable ROPS (Roll-Over Protective Structure). The intuitive layout of controls reduces operator fatigue during long working hours.

Power Steering: Standard hydraulic power steering ensures effortless maneuverability, even in tight spaces or with heavy front-end attachments.

5. Low Maintenance & High ROI

Easy Access Service Points: The streamlined hood design allows for quick access to the engine, filters, and battery, simplifying daily maintenance and reducing downtime.

Cost-Effective Operations: Optimized for fuel efficiency and built with standardized components, ensuring that your long-term operational and spare parts costs remain low.
