4lz-6.0 Rice Combine Harvester with Cabin Costumized

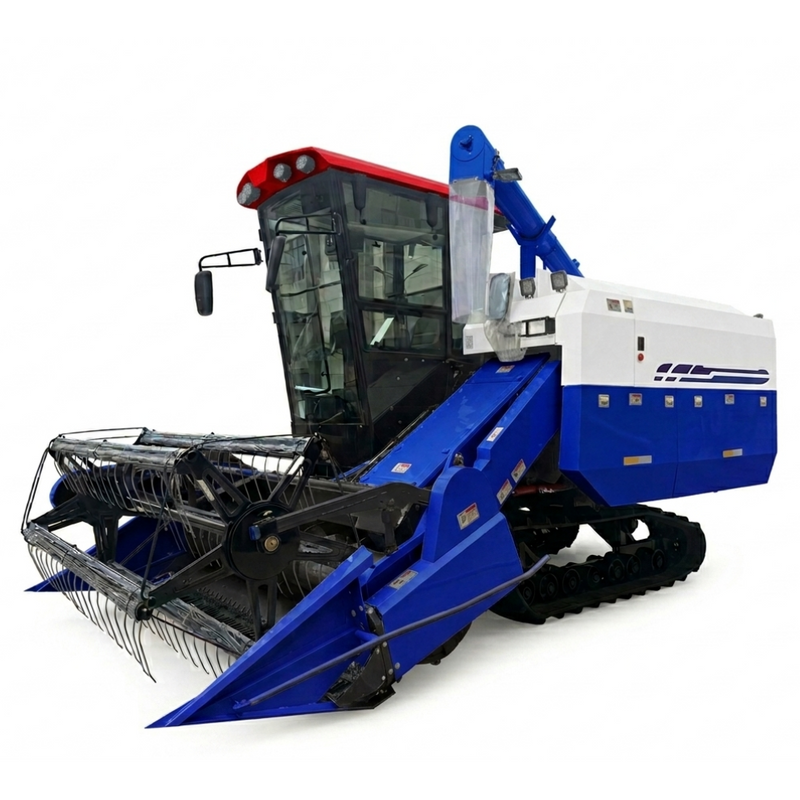

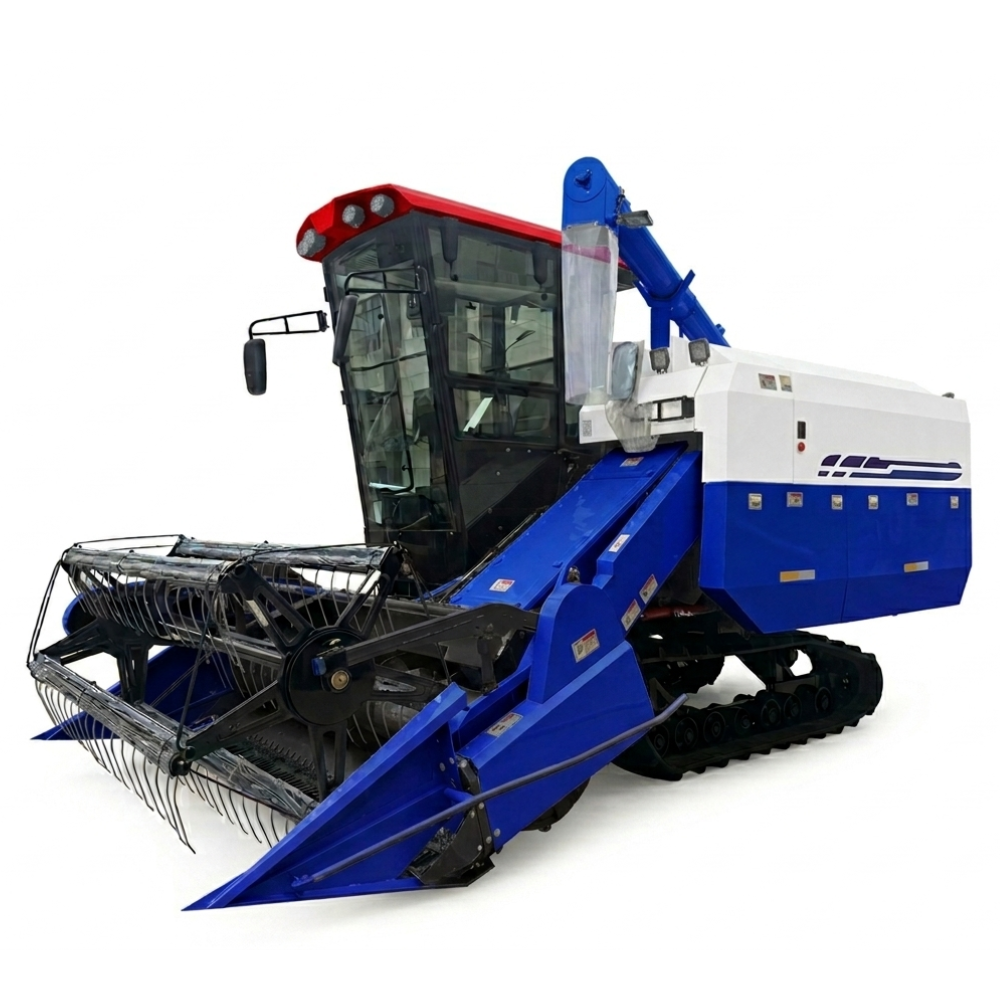

This cabin-equipped mini crawler rice combine harvester integrates cutting, threshing, cleaning and grain storage in one single unit. Built with compact body and rubber tracked chassis, it delivers outstanding mobility on muddy paddy fields, hillsides and scattered small farmlands. Multiple engine power tiers are optional, and full personalized customization is available for cutting width, grain unloading system, body color and functional accessories, perfectly matching diversified smallholder farming demands across global markets.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

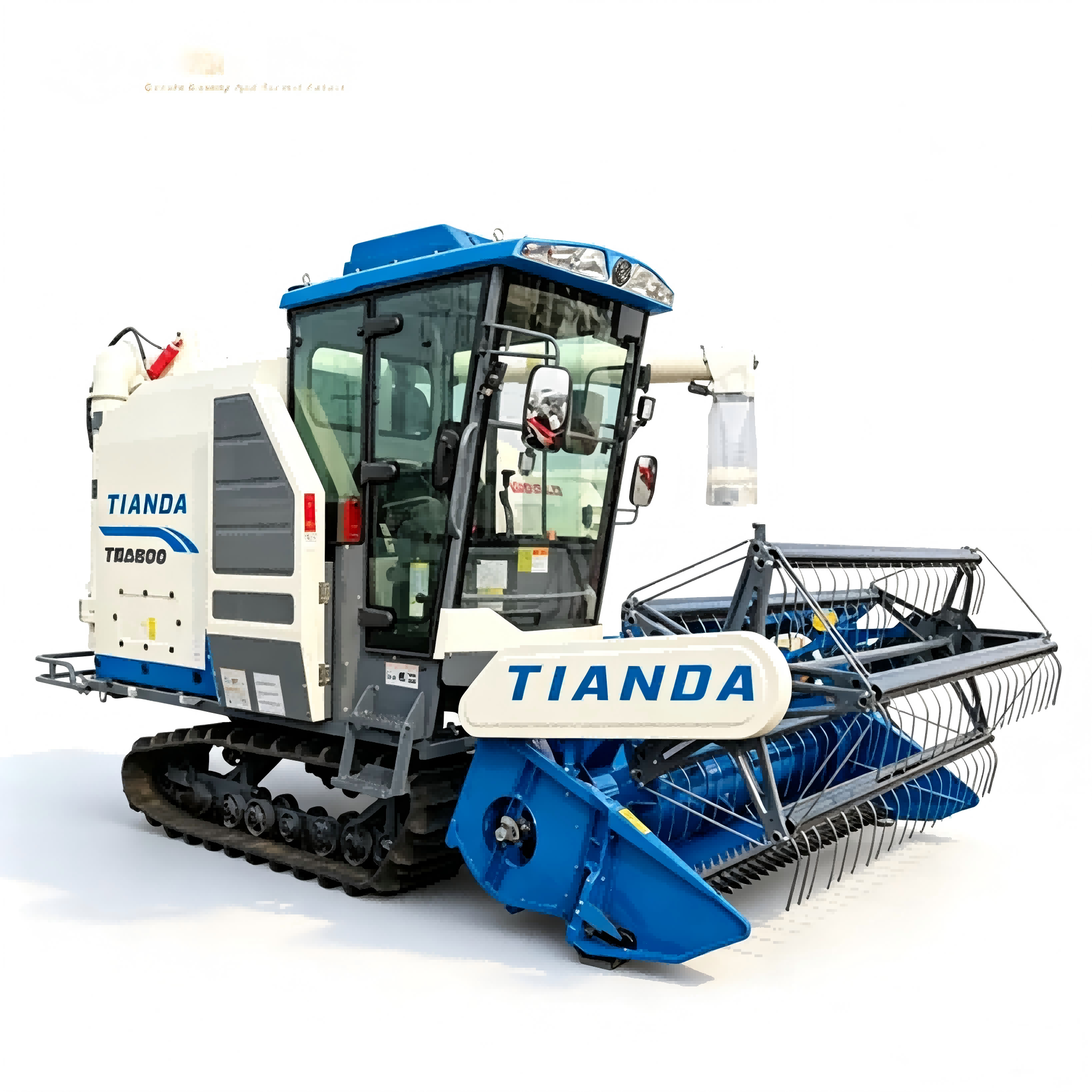

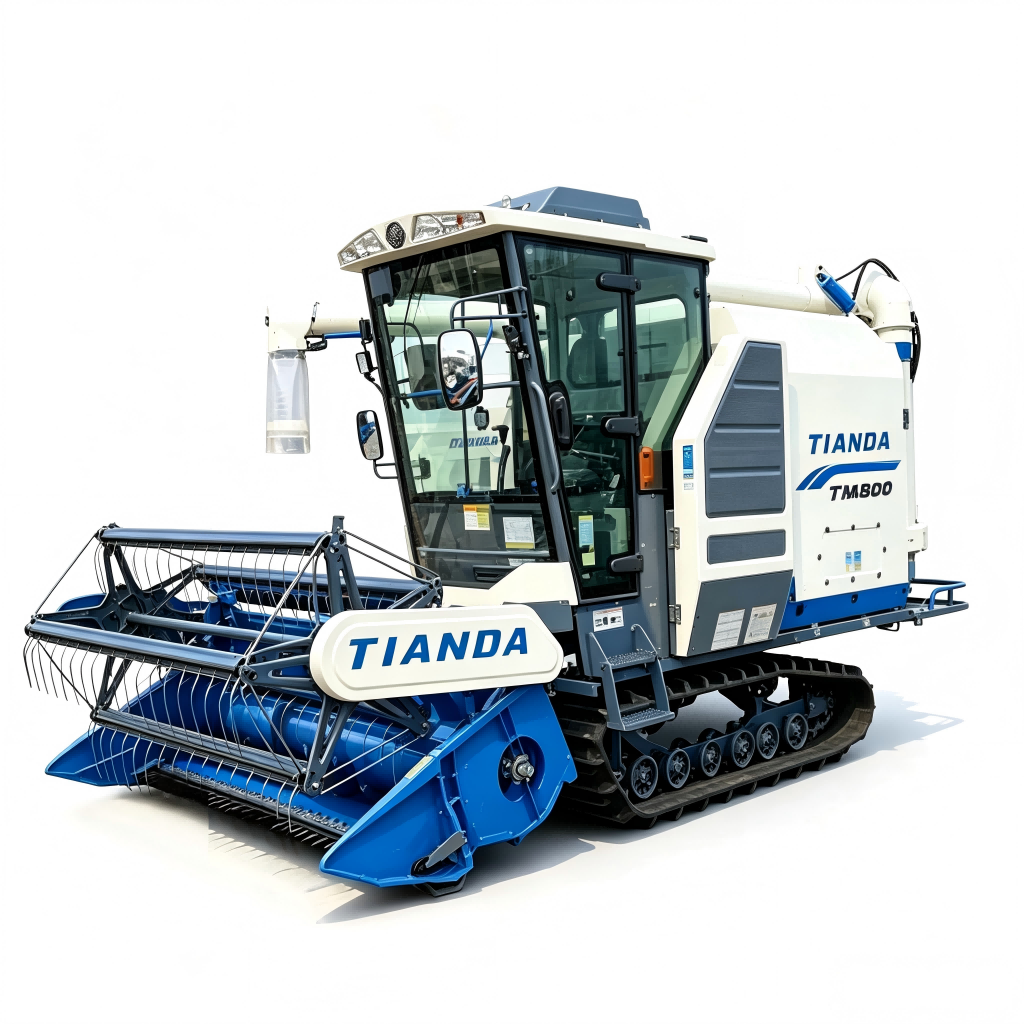

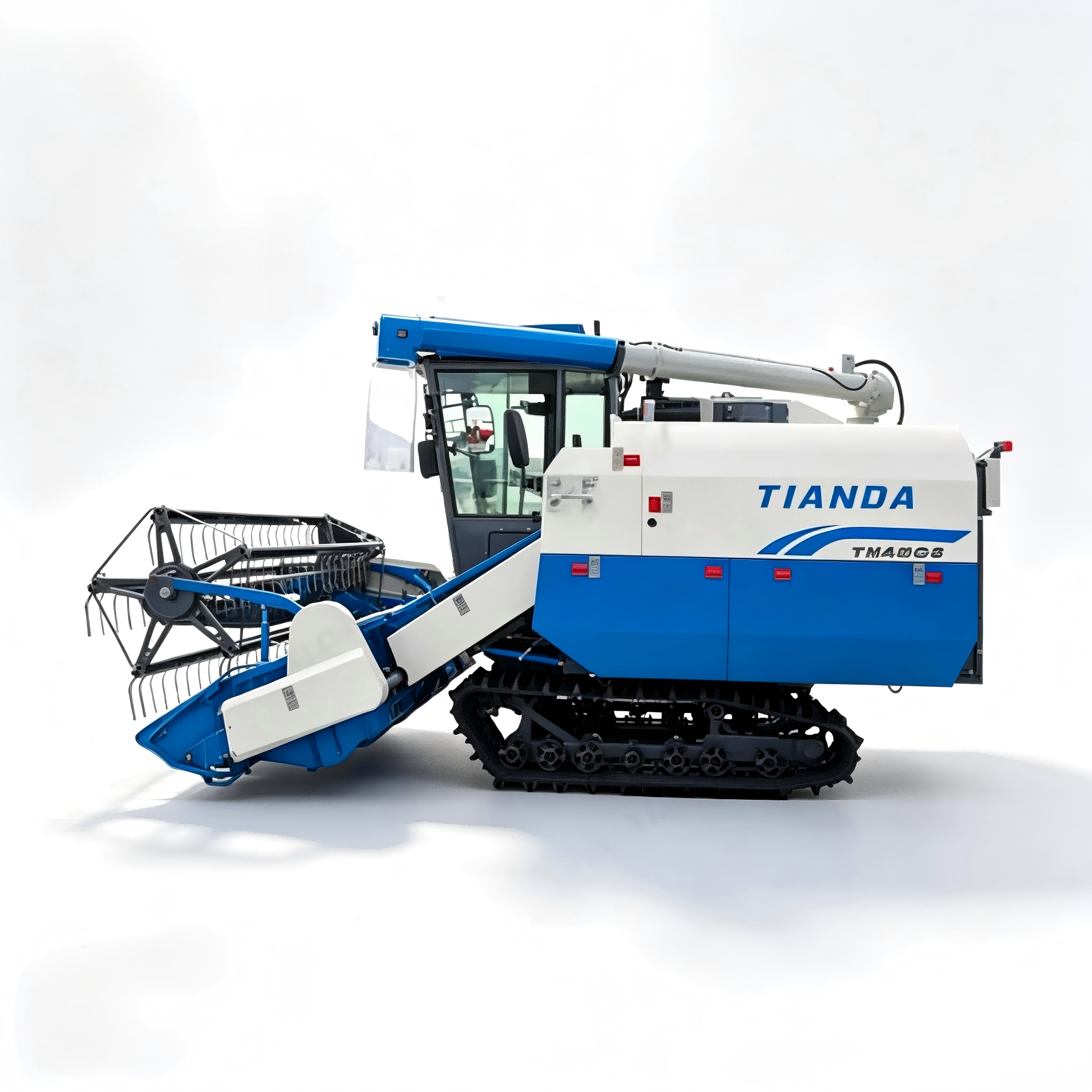

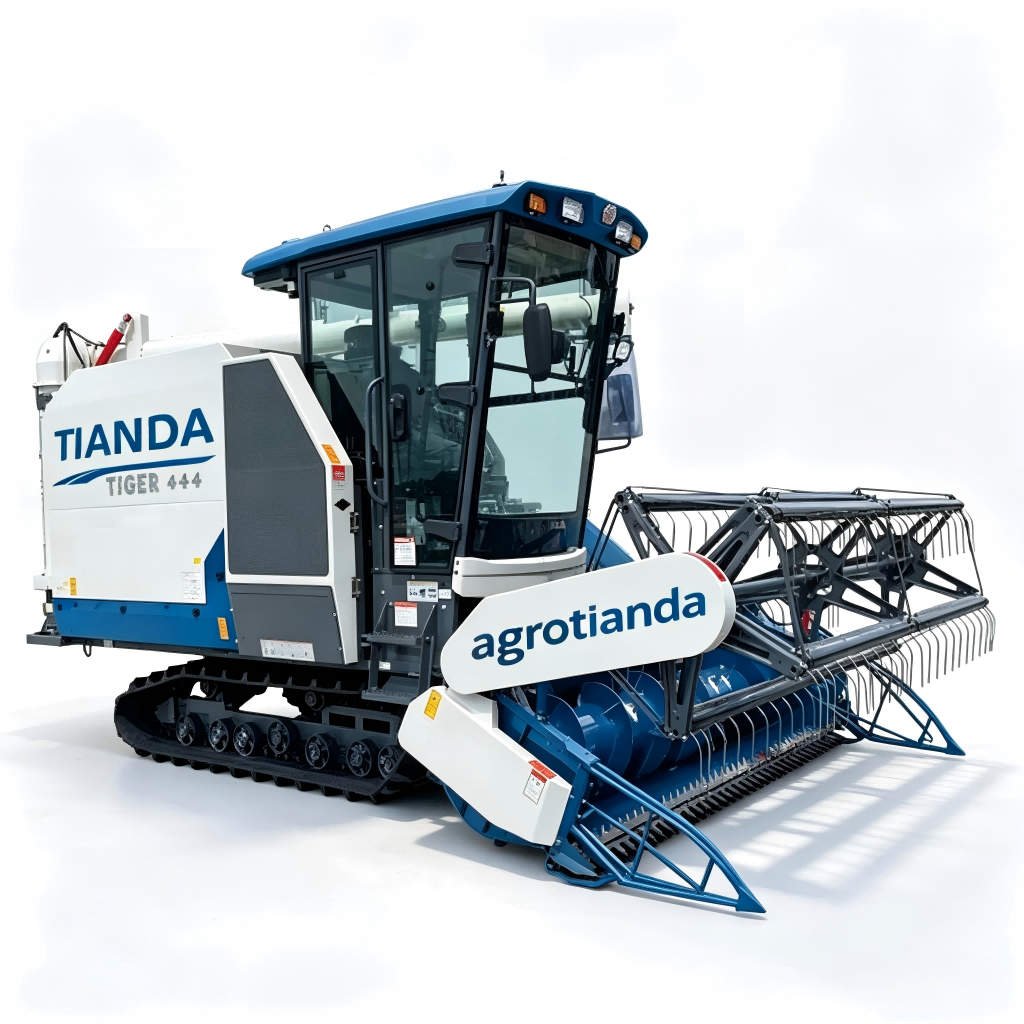

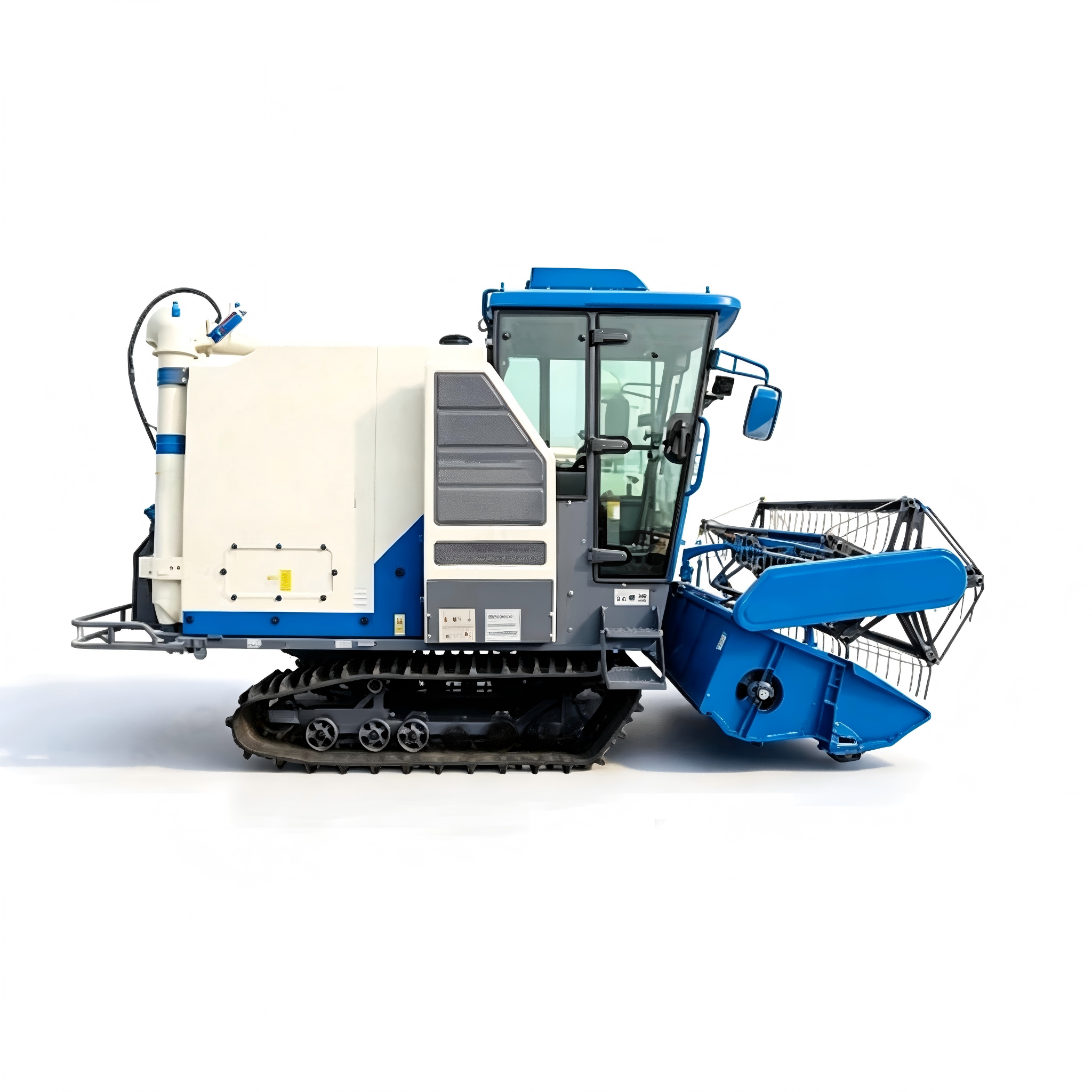

big tank combine Harvester with cabin (1) big tank combine Harvester big tank combine Harvester with cabin (5)

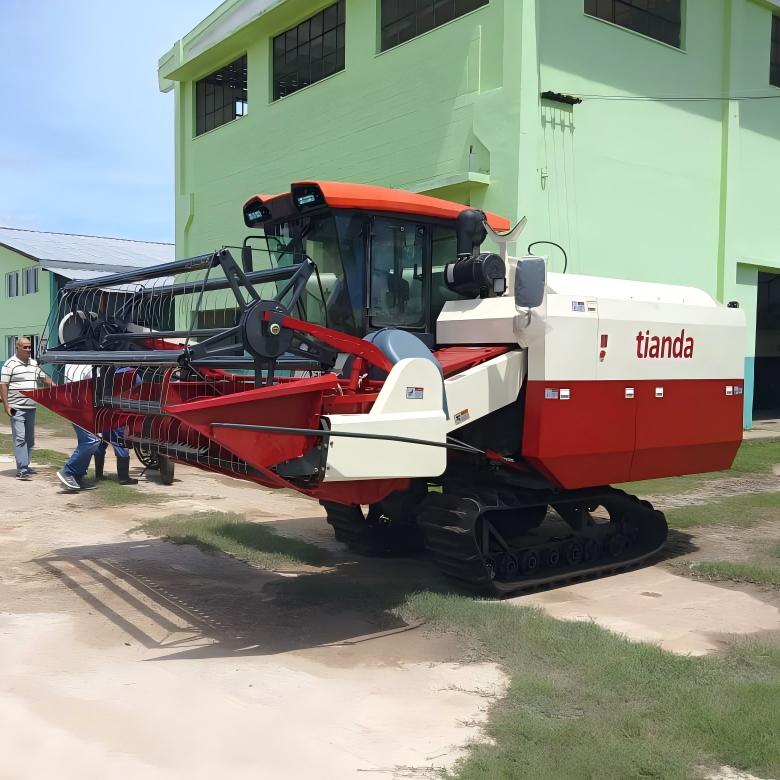

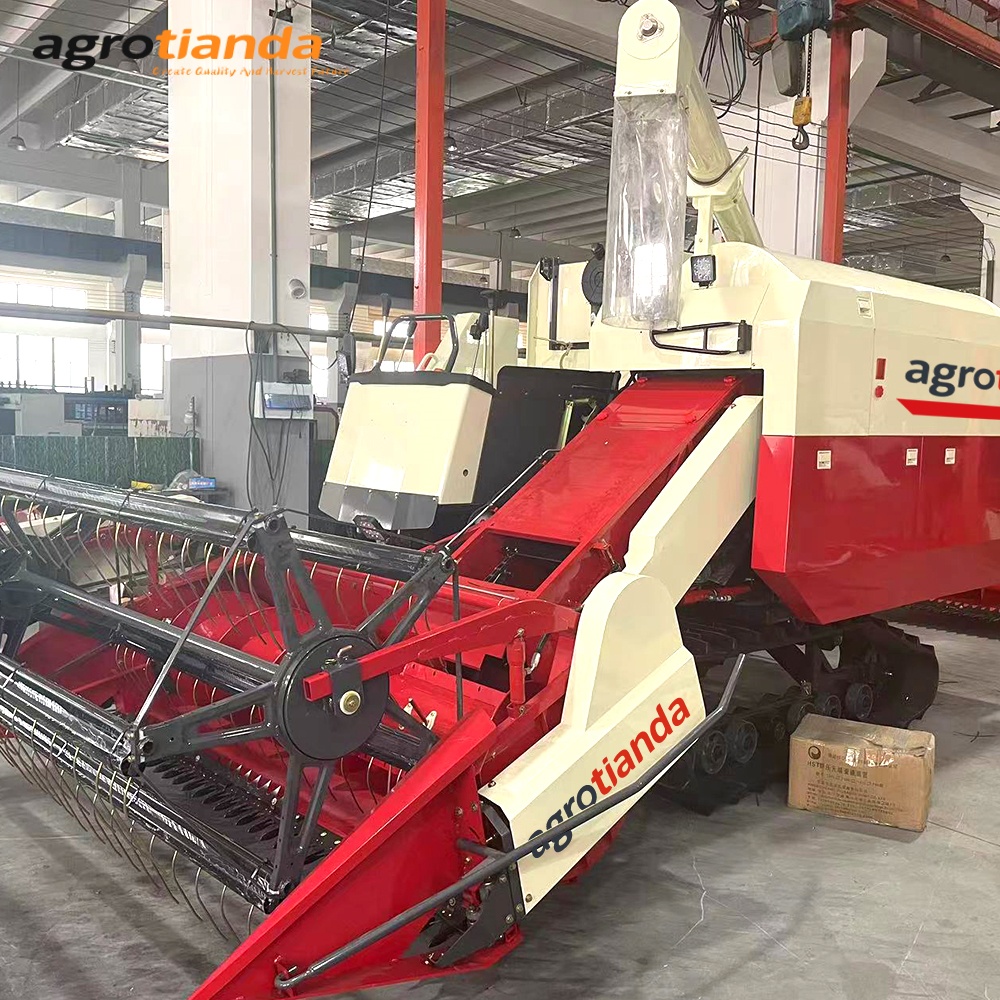

Rubber track combine harvester for paddy field with cabin Rubber track combine harvester for paddy field 详情 (2)


Power Source

Diesel

Harvest method

Cutting

Drive Type

Gear Drive

Transmission

Soft Shaft

Certification

ISO9001:2008

Color

Red/Blue

Condition

New

Application Field

Agriculture


Warranty

12 Months

Application

Rice,Corn,Wheat, Soybean

Engine Brand

Changchai

Hst /Gearbox

Zkb85/45cc

Weight

3800kg

Capacity

1700kg

Transport Package

Nude Packing

Specification

5150x2620x3030mm

Trademark

Agrotianda

Origin

China

HS Code

84335100


Production Capacity

1000/Year


111

Model

RUILONG 4LZ-6.0P

Type

Self-propelled Whole-feeding

Dimension

L x W x H(mm)

5150x2620x3030

Weight(kg)

3400

Engine

Power(HP)

110

RPM(r/min)

2600

Fuel Capacity(L)

130

Gearbox

Hydraulic Gearbox Box ZKB85

HST

45cc

Chassis

Track(mm)

500*90*53

Track Center(mm)

1350

Ground Clearance(mm)

360

Harvesting

Cutting Width(mm)

2360

Feeding Capacity (kg/s)

6

Cutting Bar Lift

Hydraulic Control

Threshing

Type

Axial Flow Type with Beat Bars

Threshing Cylinder (mm)

620*2010

Filtrate Type

Vibrating Sieves+ Centrifugal Fan

Work efficiency(ha./h)

1.2-1.8

Crops

Rice, Wheat, Rape,Soybean,Corn



OEM/ODM Customization Available

Color

Blue, yellow, red, orange, green, and any custom color of your choice.

Engine Brand

Quanchai,Xinchai,Yuchai,YTO,Shangchai,Yunei

Rated Power (hp)

50-240hp

Tire Tape

Dryland, Paddy Field, Radial (European Standard)—customizable upon request.

Logo

Your exclusive logo can be applied to the tractor body or hood.

  1. Comfort Enclosed Cabin for All-Day Operation Ergonomic enclosed driving cabin with wide vision windows effectively blocks wind, dust and intense sunlight, greatly reducing operator fatigue during long-hour harvesting. The intuitive centralized control panel simplifies operation with minimal training required.

  2. Compact Crawler Structure with Superior Terrain Adaptability Wide rubber tracks evenly disperse machine weight and cut down ground pressure, preventing sinking in wet mud paddies. Its slim frame turns flexibly on narrow ridges, terraced plots and uneven hilly lands inaccessible to large harvesters.

  3. Multiple Optional Power & Full Customization Service A full range of engine power options are offered to balance working efficiency and fuel consumption. Customers can tailor cutting header width, grain tank capacity, unloading mode, exterior color and auxiliary attachments based on local crop and field conditions.

  4. Multi-Crop Universal Harvesting Capacity Capable of harvesting rice, wheat, soybean, rapeseed and other small grains with low grain loss rate. High-efficiency double-layer air cleaning system separates straw and impurities thoroughly to output clean grains directly.

  5. Reinforced Wear-Resistant Structure & Low Maintenance Cost Thickened stainless steel threshing chamber and anti-clogging conveying mechanism extend service life. Simplified internal layout allows quick daily cleaning, inspection and component replacement, lowering long-term maintenance expenses.

  6. Integrated One-Pass Harvesting Saves Massive Labor Completes full harvesting procedures in one trip without separate manual threshing or cleaning, drastically cutting labor input and shortening overall harvesting cycles for small and medium farms.
