Model NO. | agrotianda404 | Type | Wheel Tractor |
Usage | Farm Tractor, Garden Tractor | Certification | ISO, SGS |
Drive Wheel | 4WD | Emission Standard | Euro II |
Fuel | Gas / Diesel | Service Life | 6-10 Years |
Size | Small | Color | Blue |
Condition | New | Power | 40HP |
Engine Brand | 4 Cylinder, Diesel, Vertical, Water Cooling | Weight | 1600kg |
Transport Package | Nude Packing | Specification | 4000 x 1600 x 2400mm |
Trademark | Agrotianda | Origin | China |
HS Code | 8701901190 | Production Capacity | 10000unit/Year |
Specification for agrotianda Tractor | ||||||
Model | TE-504 | TB-754 | TB-904 | 4X-1004 | TD-1204 | TD-1404 |
Engne Model | XINCHA | XINCHAI | XINCHAI | QUANCHAI | SHANG CHAI | SHANG CHAI |
Type | 4-Cylinder Vertical,water cooled,4 stroke cycle | 6-Cylinder Vertical,water cooled,4 stroke cycle | ||||
Construction Mass(kg) | 1800 | 2900 | 2900 | 3700 | 3900 | 3900 |
Wheel Bass(mm) | 1800 | 2010 | 2052 | 2052 | 2340 | 2340 |
Min Ground Clearance (mm) | 308 | 308 | 375 | 375 | 400 | 400 |
Rated Power(kw/hp) | 36.7/50 | 55.1/75 | 66.2/90 | 73.5/100 | 88.2/120 | 102.9/140 |
Rated Speed (rpm) | 2400 | 2400 | 2400 | 2400 | 2400 | 2200 |
Gear box | 8+8 | 12+12 | 12+12 | 12+12 | 12+12 | 16+8 |
Brake | Disc type | Disc type | Disc type | Disc type | Disc type | Disc type |
3-Point Suspension | Category:3 | Category:3 | Category:3 | Category:3 | Category:3 | Category:3 |
Rotating Speed (rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |

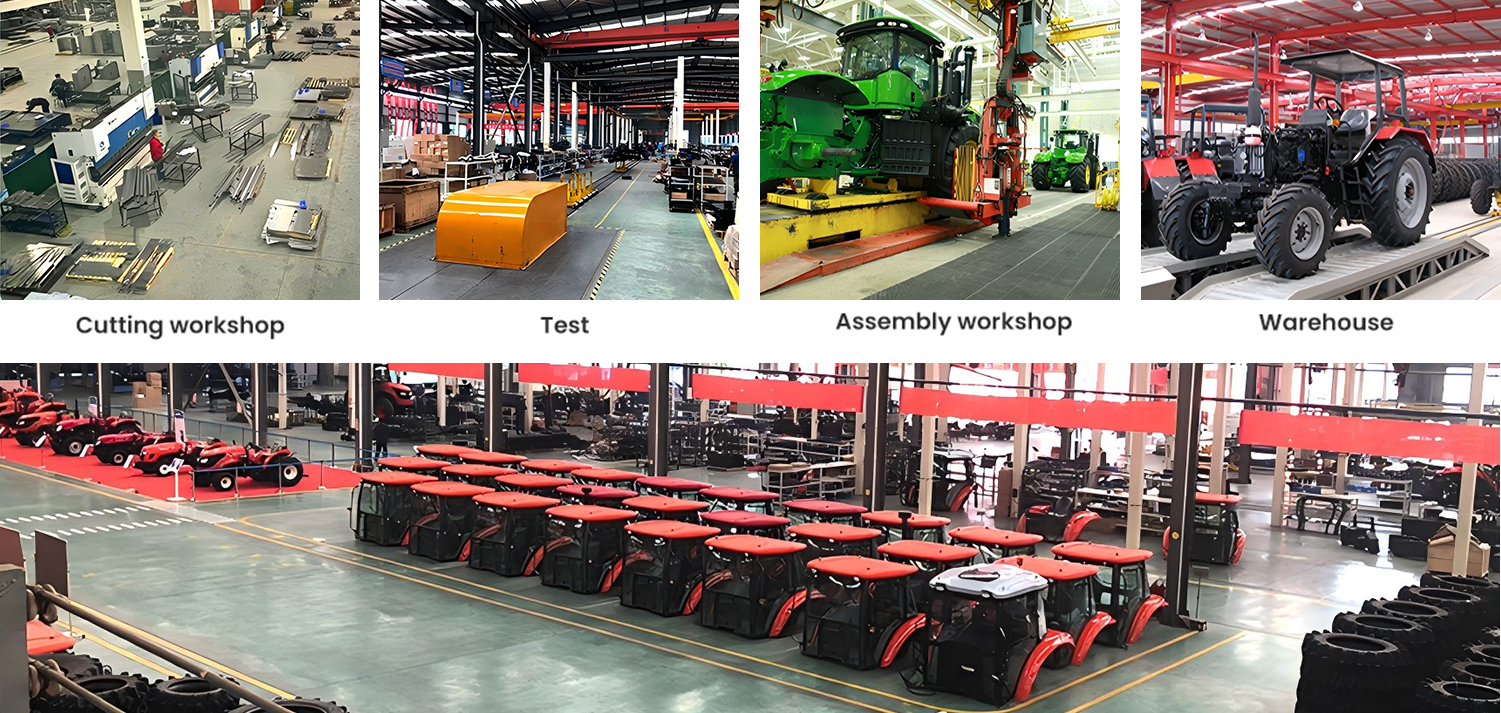

Production Process and Flow

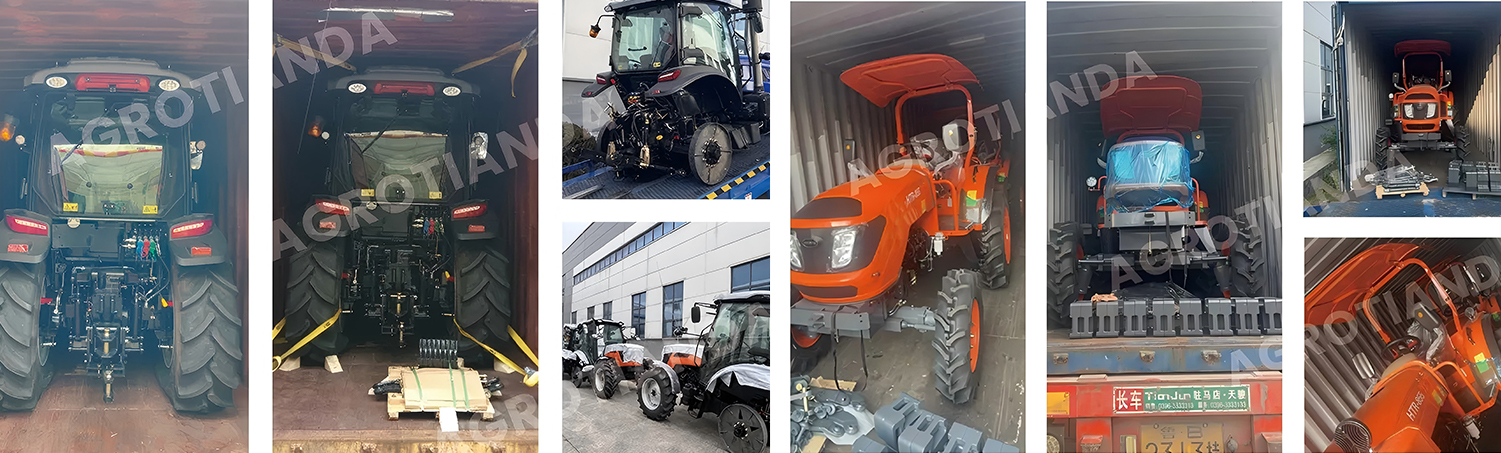

Packaging and Shipping
OEM/ODM Customization Available
Color | Blue, yellow, red, orange, green, and any custom color of your choice. |
Engine Brand | Quanchai,Xinchai,Yuchai,YTO,Shangchai,Yunei |
Rated Power (hp) | 50-240hp |
Tire Tape | Dryland, Paddy Field, Radial (European Standard)—customizable upon request. |
Logo | Your exclusive logo can be applied to the tractor body or hood. |

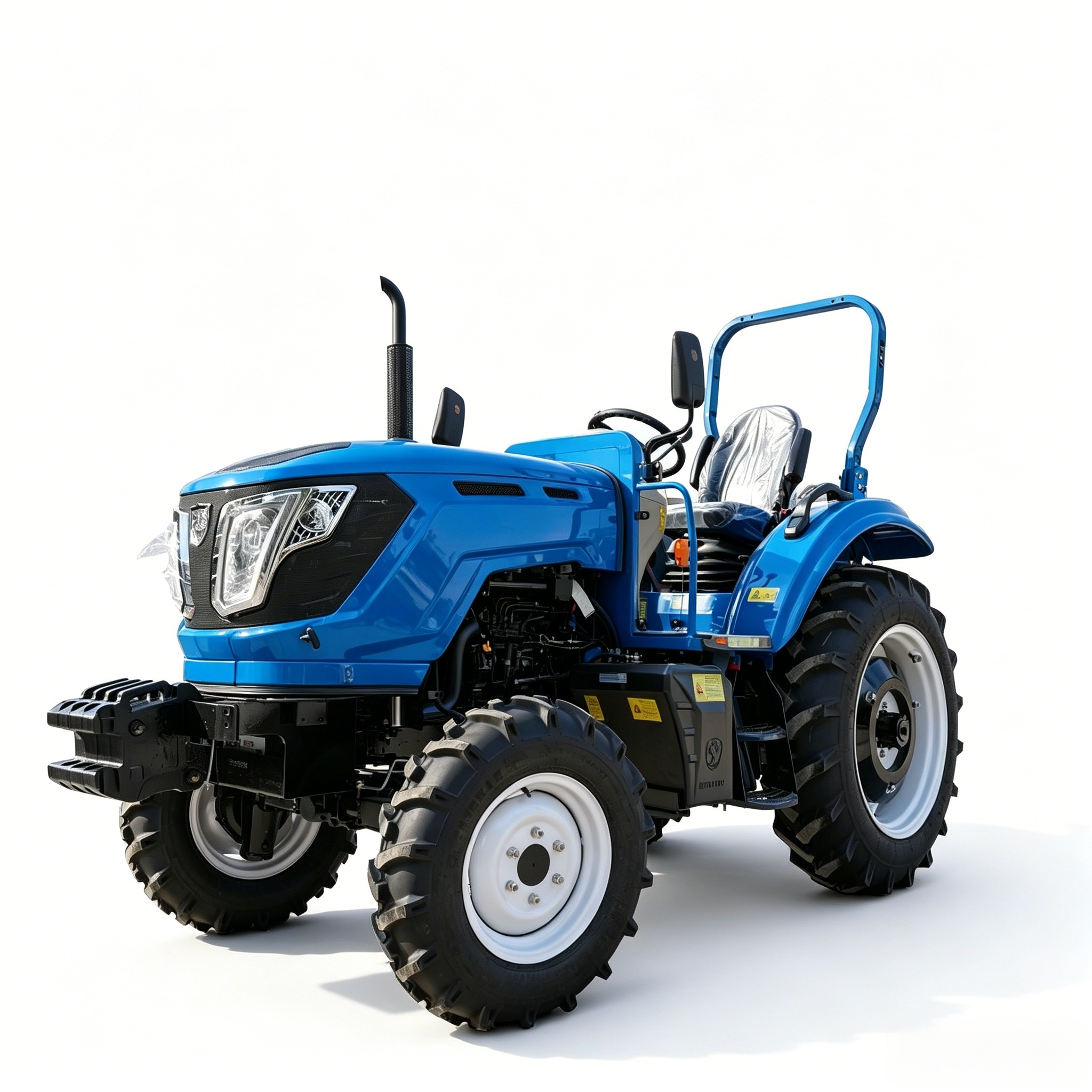

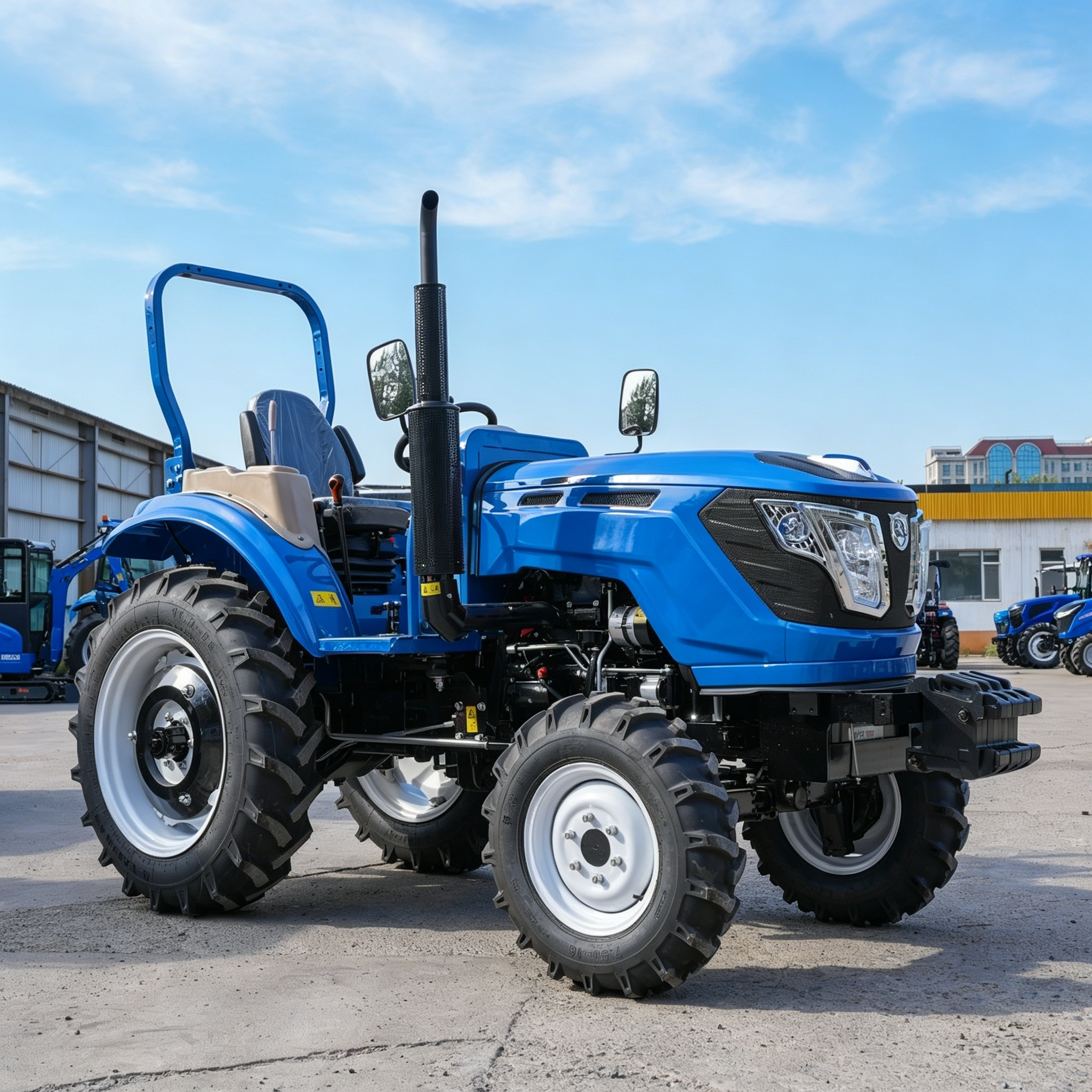

Reliable 40HP Diesel Power
The tractor is equipped with a high-efficiency 40HP diesel engine, providing stable power output and sufficient torque for daily farming tasks. It runs smoothly with low fuel consumption and minimal failure rates, effectively reducing long-term operating costs. This consistent power ensures reliable performance for plowing, tilling, and hauling throughout the working season.

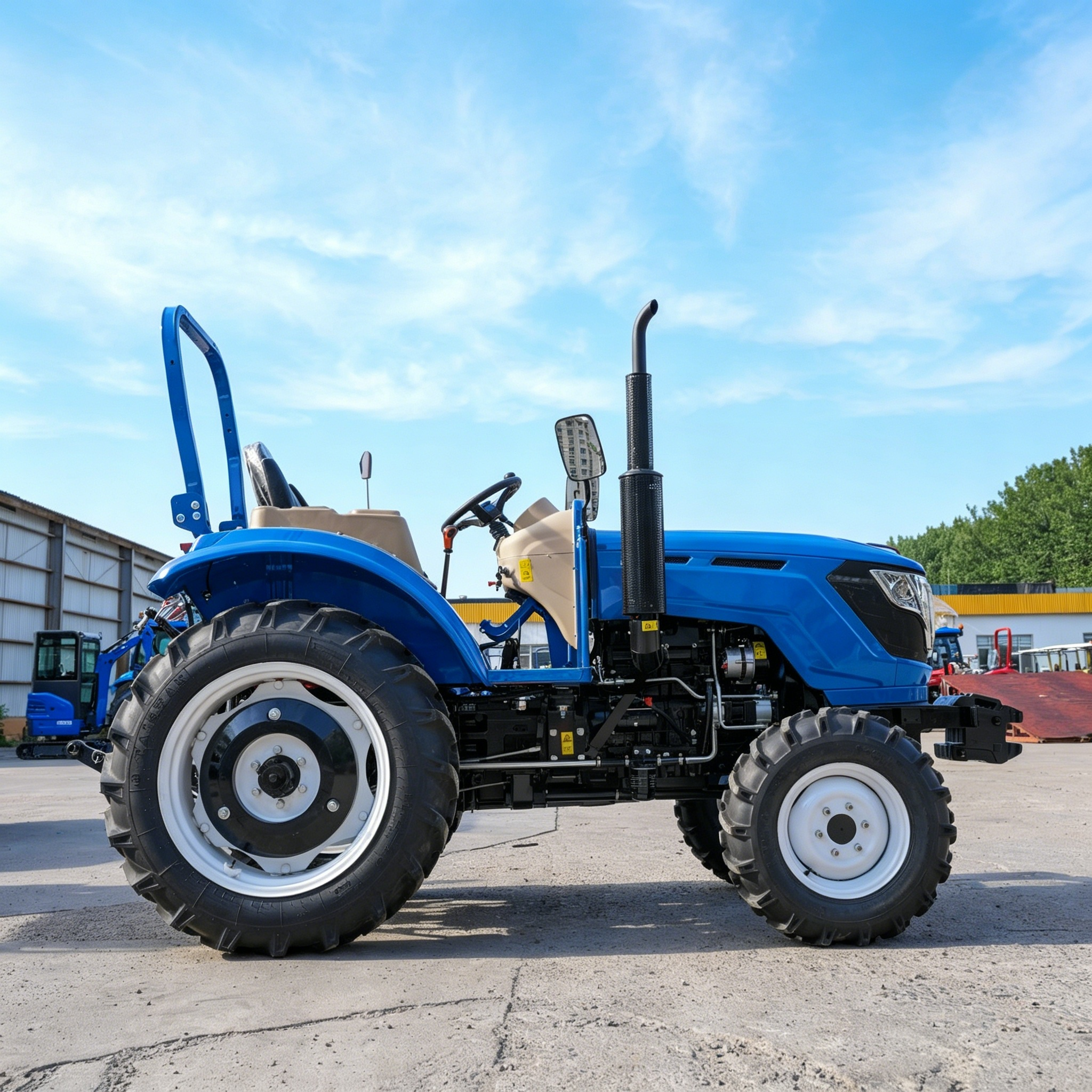

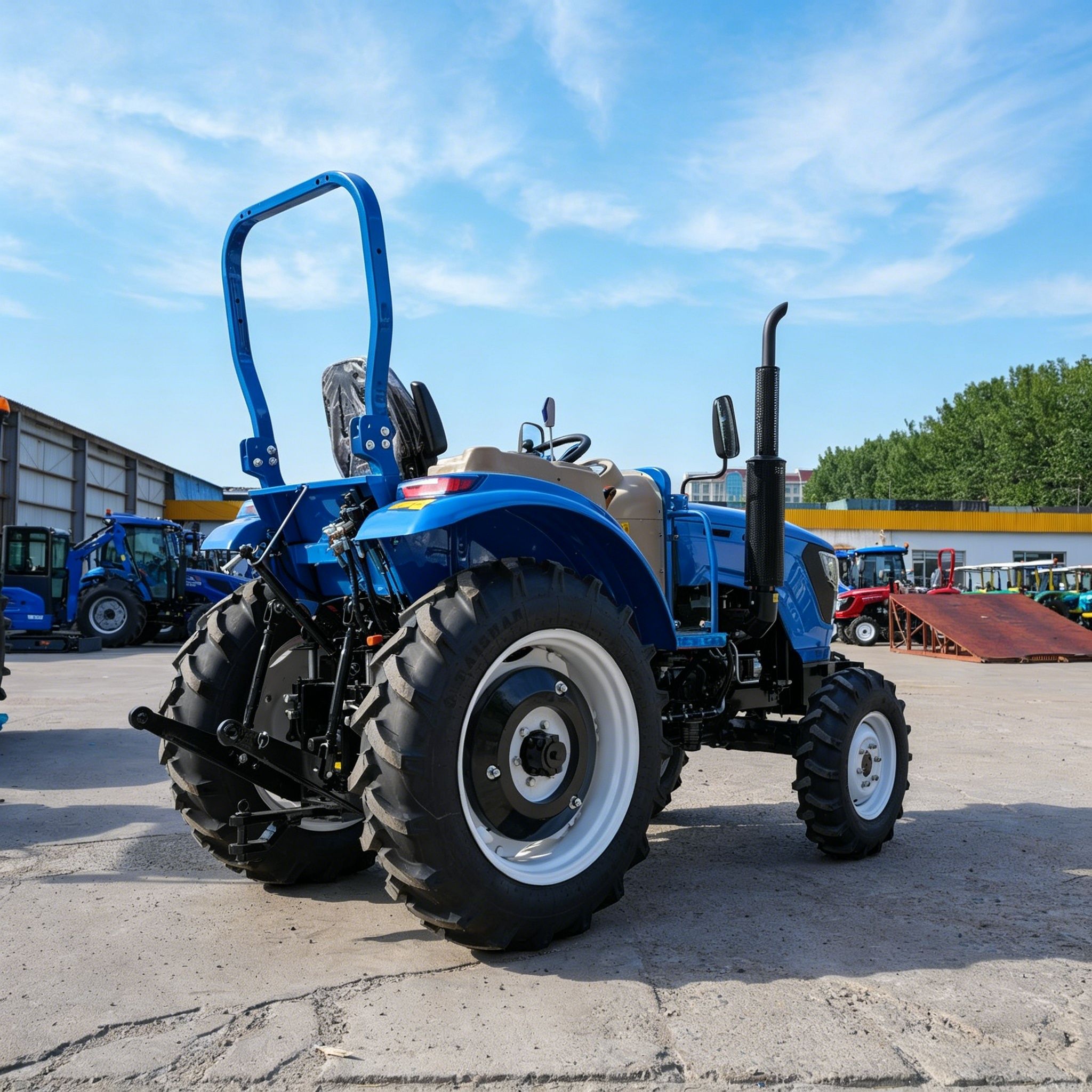

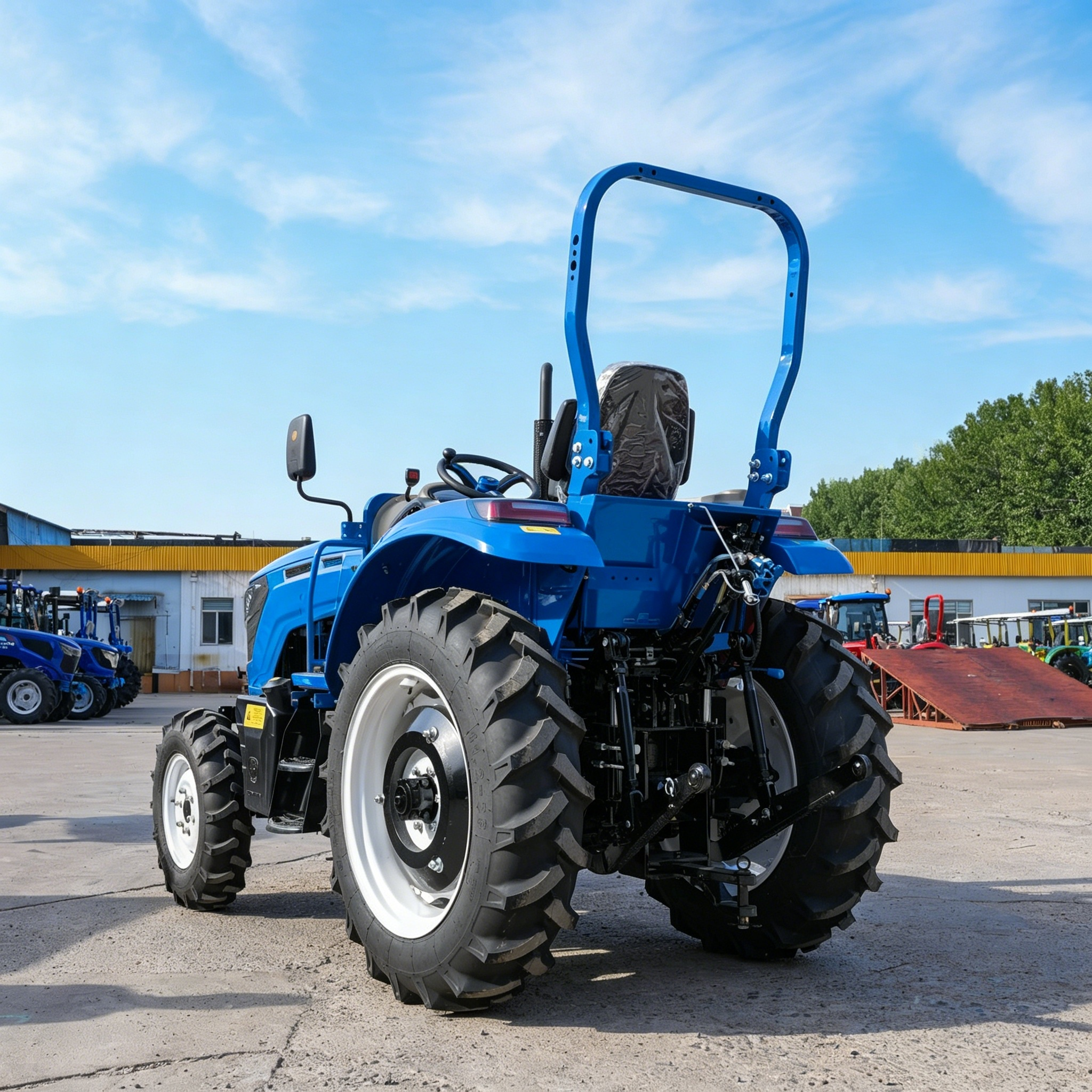

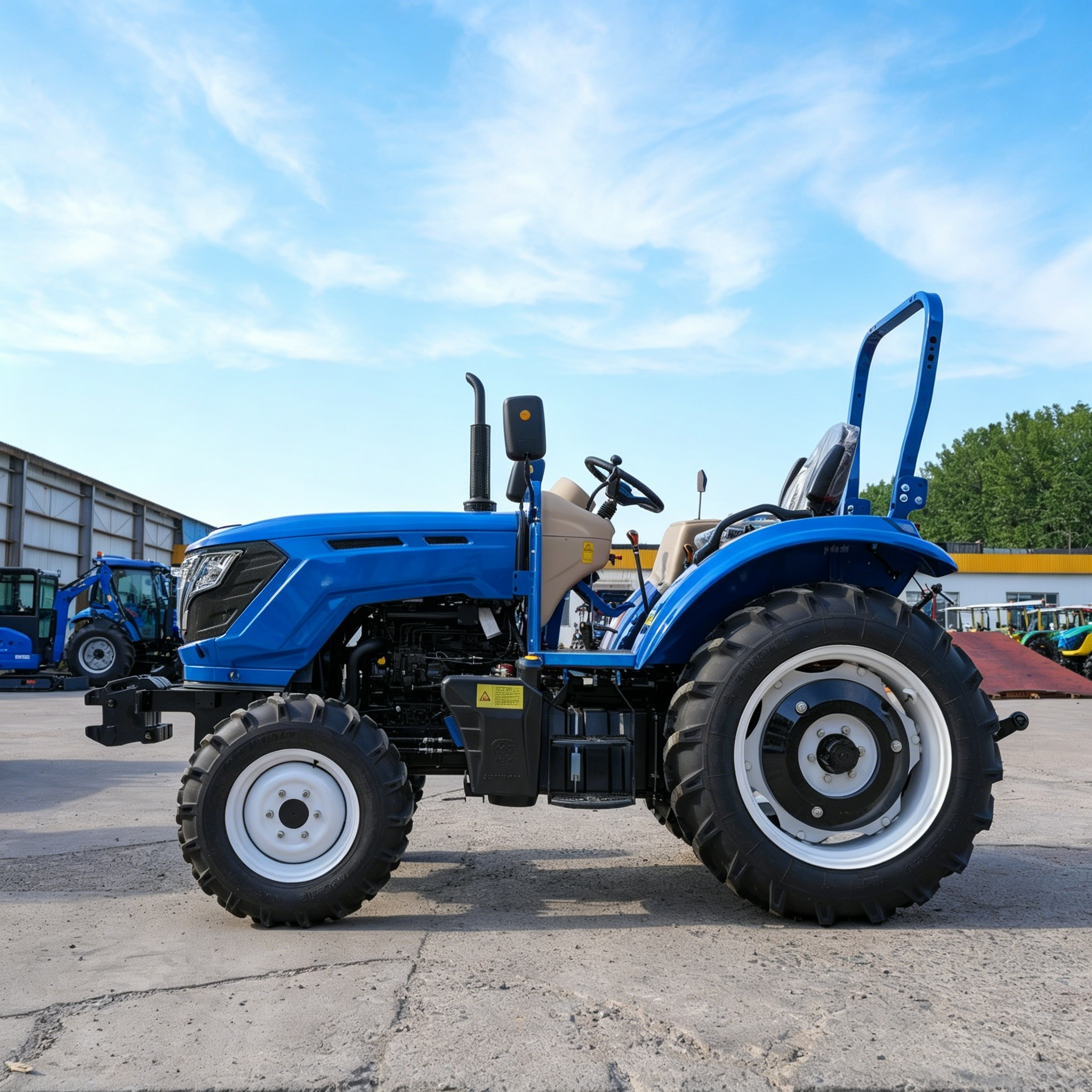

Open-Frame Design for Maximum Visibility
Without an enclosed cabin, this open-style tractor offers an unobstructed, 360° field of view. Operators can clearly monitor the working area and implement status at all times, which is crucial for precise work in orchards, vineyards, and narrow-row crops. This design also makes getting on and off the tractor quick and convenient.

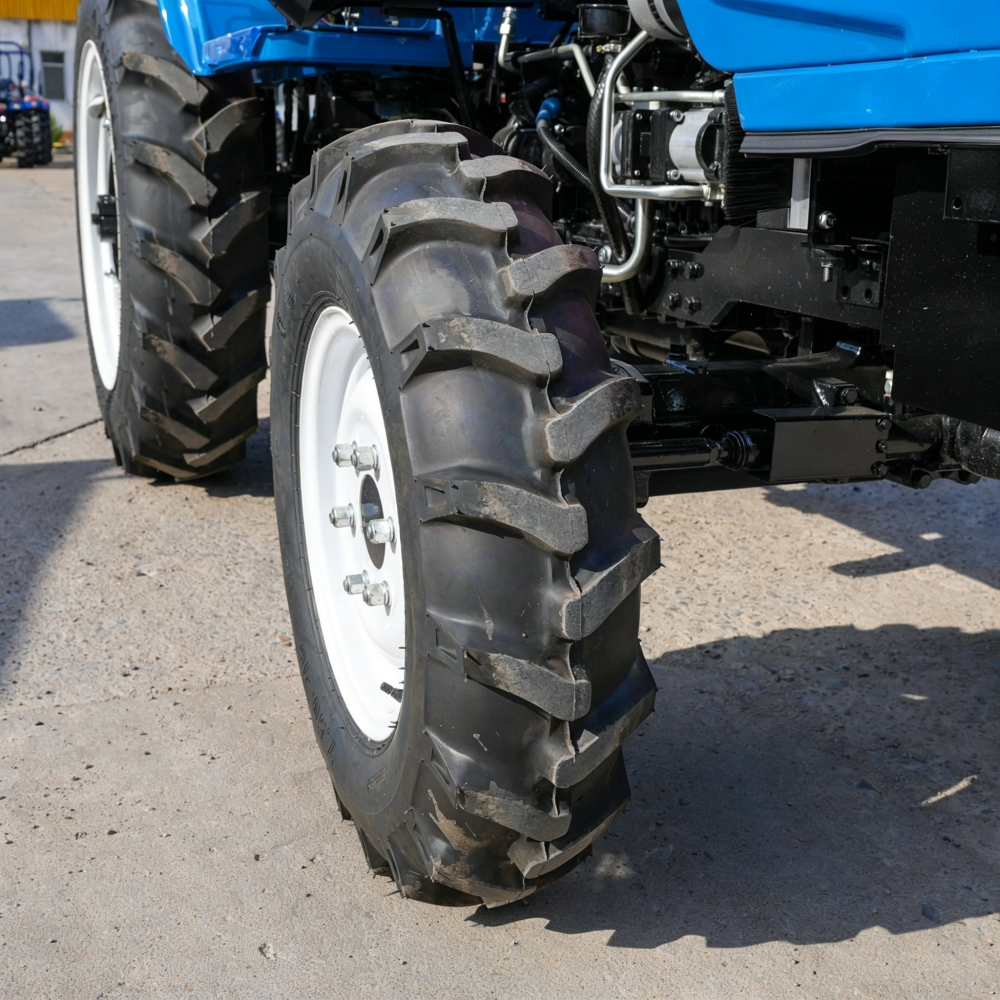

Strong 4WD Off-Road Traction
The professional four-wheel drive system provides excellent grip and traction, allowing the tractor to operate stably on muddy fields, sloped terrain, and uneven rural roads. It adapts to various complex farmland environments, ensuring smooth progress of farming tasks even in challenging weather and ground conditions.

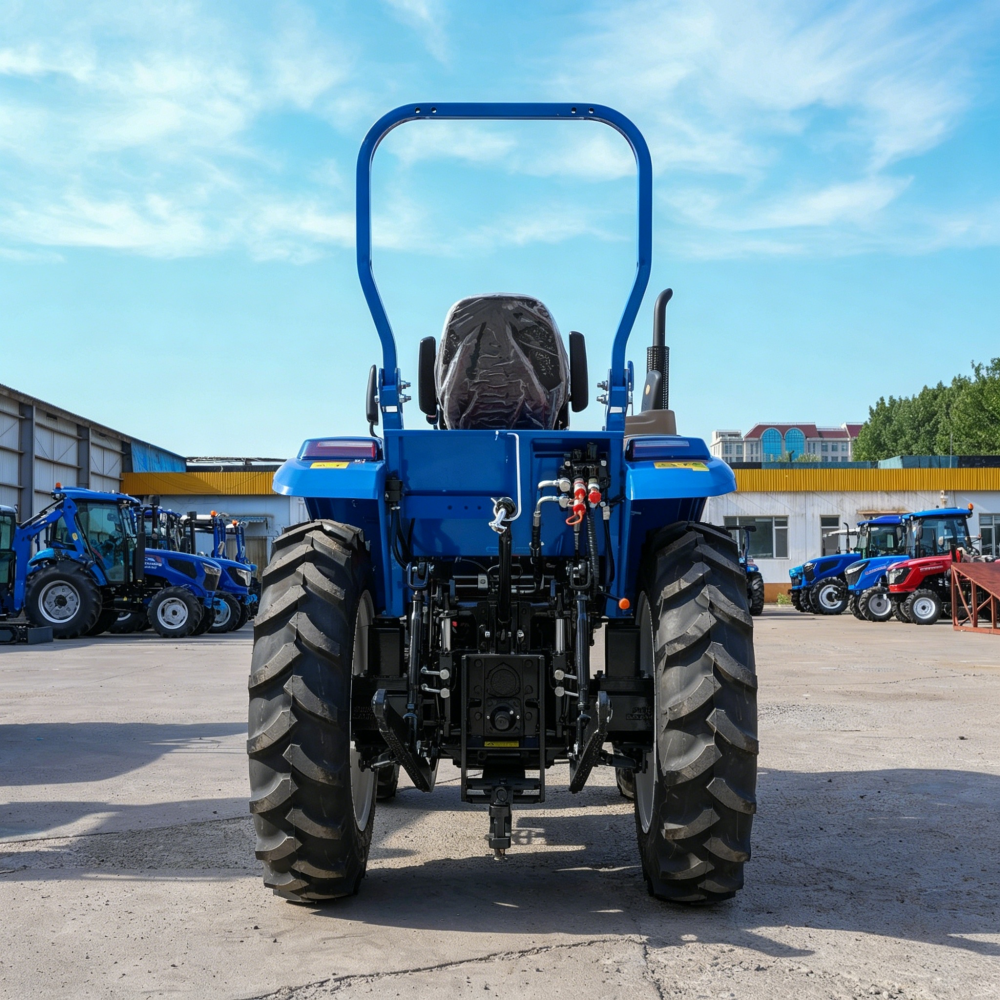

Multi-Implement Compatibility & Versatility
This compact tractor supports quick connection with a wide range of common agricultural implements, including plows, harrows, seeders, sprayers, and trailers. It enables users to complete multiple farming tasks with a single machine, maximizing its utility and saving the cost of purchasing separate specialized equipment.
Durable Construction & Low Maintenance
Built with a reinforced steel frame and high-quality components, the tractor is designed to withstand harsh field conditions for long-term use. Its simple and accessible structure makes daily inspections and routine maintenance easy and affordable, minimizing downtime and repair costs for the user.
