Model NO. | Agrotianda1604 | Type | Wheel Tractor |
Usage | Farm Tractor, Garden Tractor | Certification | ISO, SGS |
Drive Wheel | 4WD | Emission Standard | Euro II |
Fuel | Gas / Diesel | Service Life | 6-10 Years |
Size | Large | Color | Red |
Condition | New | Power | 160HP |
Engine Brand | 4 Cylinder, Diesel, Vertical, Water Cooling | Weight | 4000kg |
Transport Package | Nude Packing | Specification | 5150 x 1980 x 2630mm |
Ground Clearance | 330mm | Origin | China |
HS Code | 8701901190 | Production Capacity | 10000unit/Year |
Specification for agrotianda Tractor | ||||||
Model | TE-504 | TB-754 | TB-904 | 4X-1004 | TD-1204 | TD-1404 |
Engne Model | XINCHA | XINCHAI | XINCHAI | QUANCHAI | SHANG CHAI | SHANG CHAI |
Type | 4-Cylinder Vertical,water cooled,4 stroke cycle | 6-Cylinder Vertical,water cooled,4 stroke cycle | ||||
Construction Mass(kg) | 1800 | 2900 | 2900 | 3700 | 3900 | 3900 |
Wheel Bass(mm) | 1800 | 2010 | 2052 | 2052 | 2340 | 2340 |
Min Ground Clearance (mm) | 308 | 308 | 375 | 375 | 400 | 400 |
Rated Power(kw/hp) | 36.7/50 | 55.1/75 | 66.2/90 | 73.5/100 | 88.2/120 | 102.9/140 |
Rated Speed (rpm) | 2400 | 2400 | 2400 | 2400 | 2400 | 2200 |
Gear box | 8+8 | 12+12 | 12+12 | 12+12 | 12+12 | 16+8 |
Brake | Disc type | Disc type | Disc type | Disc type | Disc type | Disc type |
3-Point Suspension | Category:3 | Category:3 | Category:3 | Category:3 | Category:3 | Category:3 |
Rotating Speed (rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
Production Process and Flow
Packaging and Shipping
OEM/ODM Customization Available
Color | Blue, yellow, red, orange, green, and any custom color of your choice. |
Engine Brand | Quanchai,Xinchai,Yuchai,YTO,Shangchai,Yunei |
Rated Power (hp) | 50-240hp |
Tire Tape | Dryland, Paddy Field, Radial (European Standard)—customizable upon request. |
Logo | Your exclusive logo can be applied to the tractor body or hood. |

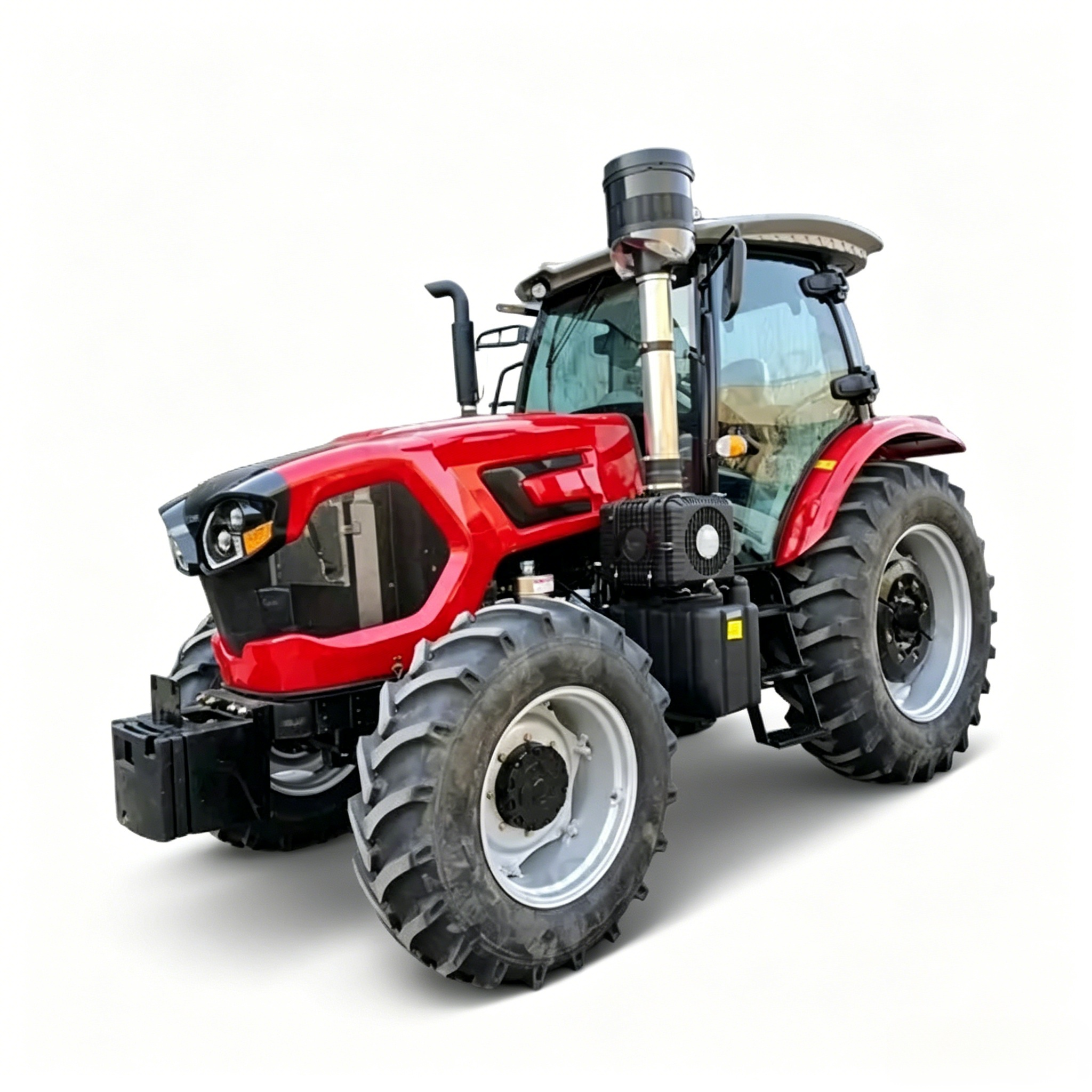

1. 160HP High-Performance Turbocharged Engine
Dominate the most demanding field conditions with our flagship 160HP power plant. This tractor is engineered specifically for large-scale operations that require maximum muscle and endurance.
Massive Tractive Force: Effortlessly pulls the heaviest industrial-grade implements, including 6-bottom plows, large-scale subsoilers, and high-capacity air seeders.
Reliable Euro II Technology: Built with a robust mechanical engine design that excels in remote areas. It is highly resilient against varying fuel qualities and simplified for easier maintenance without complex electronics.
Exceptional Torque Reserve: Provides steady, reliable power delivery even under extreme loads, ensuring consistent productivity during critical planting and harvest seasons.
2. Heavy-Duty 4x4 Drive Train & Reinforced Chassis
Harnessing 160 horsepower requires a chassis built to industrial standards. Every component is over-engineered to handle immense stress.
Synchronized 4WD System: Delivers superior traction and flotation across all terrains, from muddy wetlands to compacted hardlands, preventing wheel slip and maximizing work efficiency.
Enhanced Weight Distribution: The heavy-duty chassis provides the necessary stability for high-speed road transport and heavy rear-mounted implement operations.
Industrial-Grade Axles: Reinforced front and rear axles are designed to sustain the high-torque output and heavy vertical loads of professional-grade farming.
3. High-Capacity Hydraulic & PTO Versatility
The 160HP series serves as a versatile power hub, capable of driving the most energy-intensive modern agricultural machinery.
Precision Hydraulic Output: Features a high-flow hydraulic system with multi-way valves, providing fast and smooth control for large-scale seeders and folding implements.
Robust PTO Performance: Designed to drive high-demand equipment such as large silage harvesters, heavy-duty wood chippers, and industrial balers with ease.
4. Premium All-Weather Luxury Cabin
Operator comfort is essential for professional productivity. Our 160HP series offers a world-class working environment.
Climate-Controlled Comfort: The sealed, luxury cabin features advanced air conditioning and dust filtration, shielding the operator from extreme heat, cold, and noise.
Ergonomic Command Center: Intuitive controls and a 360-degree panoramic view allow the operator to monitor large implements and field progress with total precision and reduced fatigue.
5. Low Maintenance & Maximum Uptime
We build our flagship tractors to be a reliable long-term asset, minimizing downtime when every hour counts.
Simplified Service Access: Large side-opening panels provide quick access to all major maintenance points, filters, and cooling systems for rapid daily checks.
Global Durability Standards: Built with high-quality, standardized components to ensure long service life and easy parts availability in international markets.
