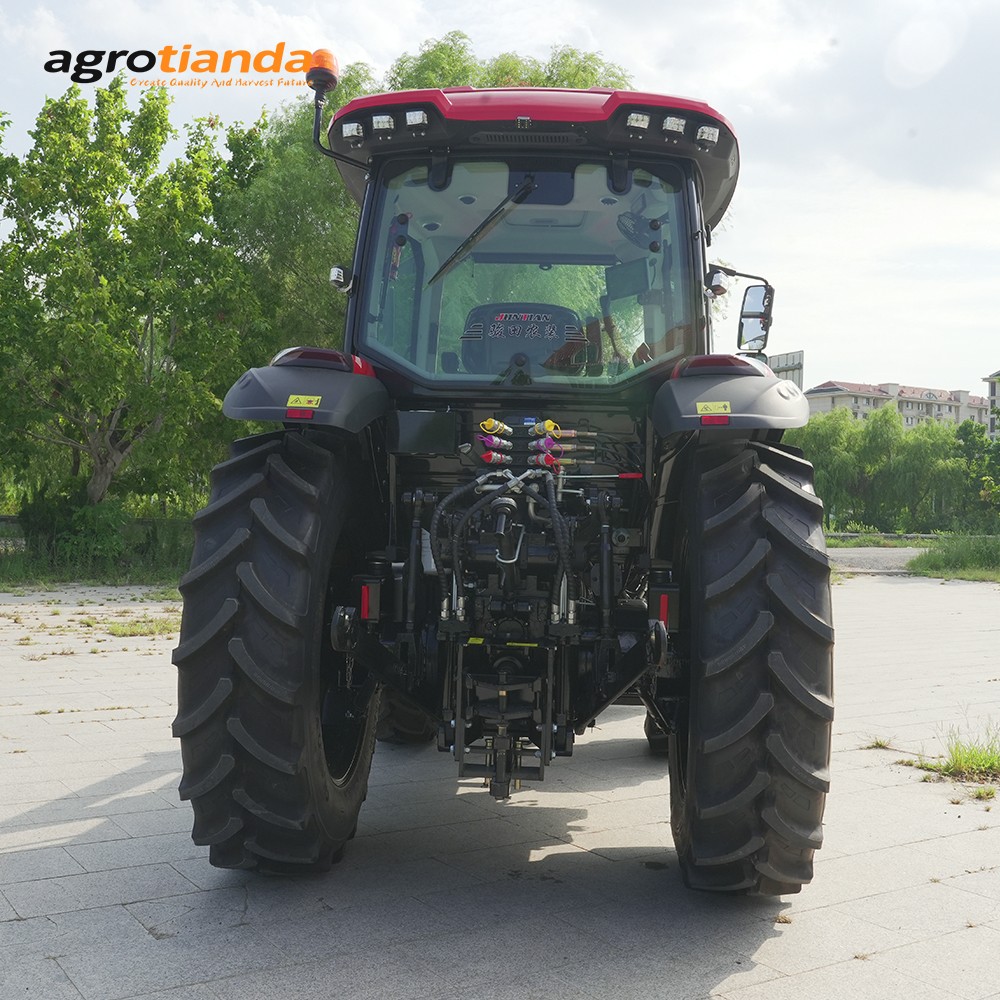

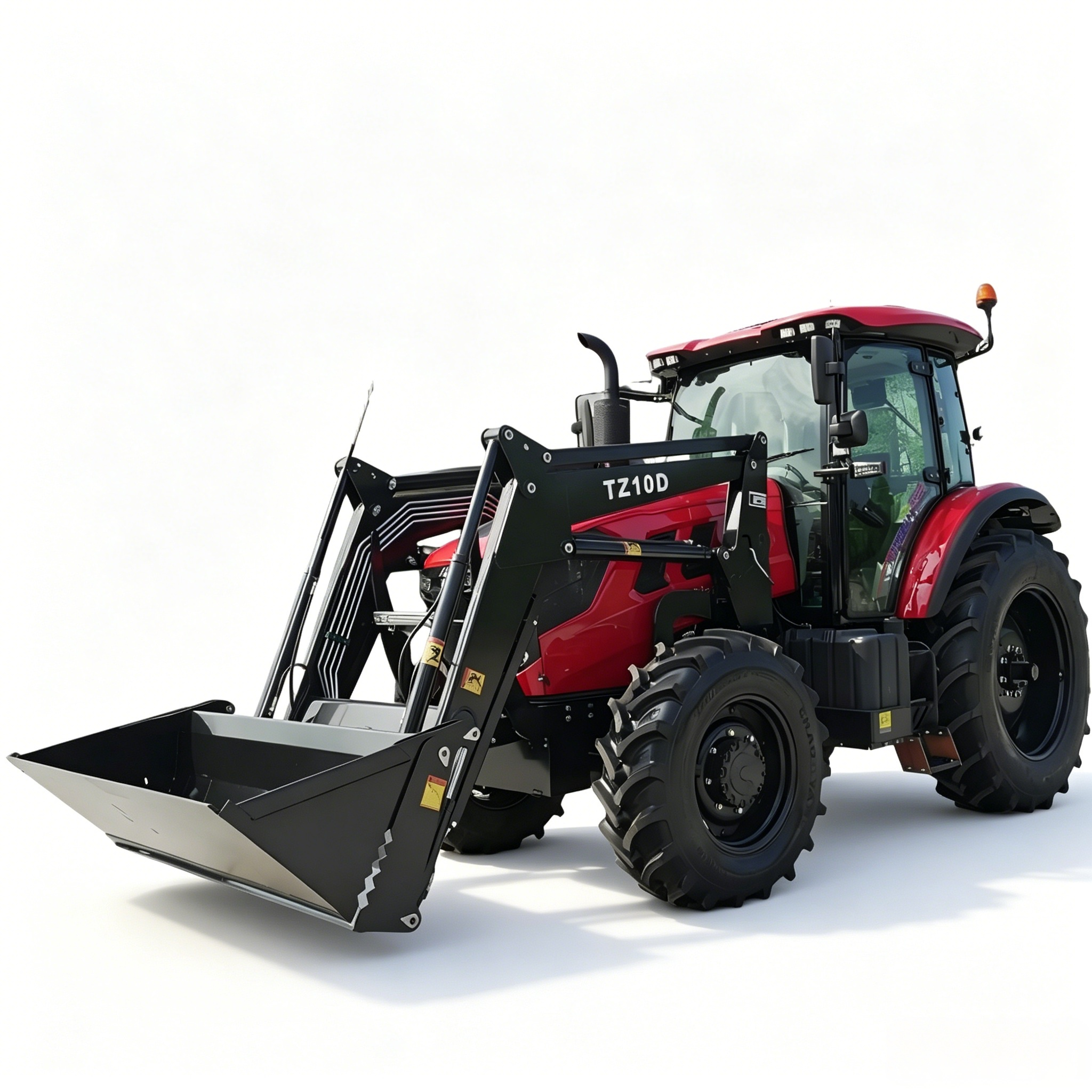

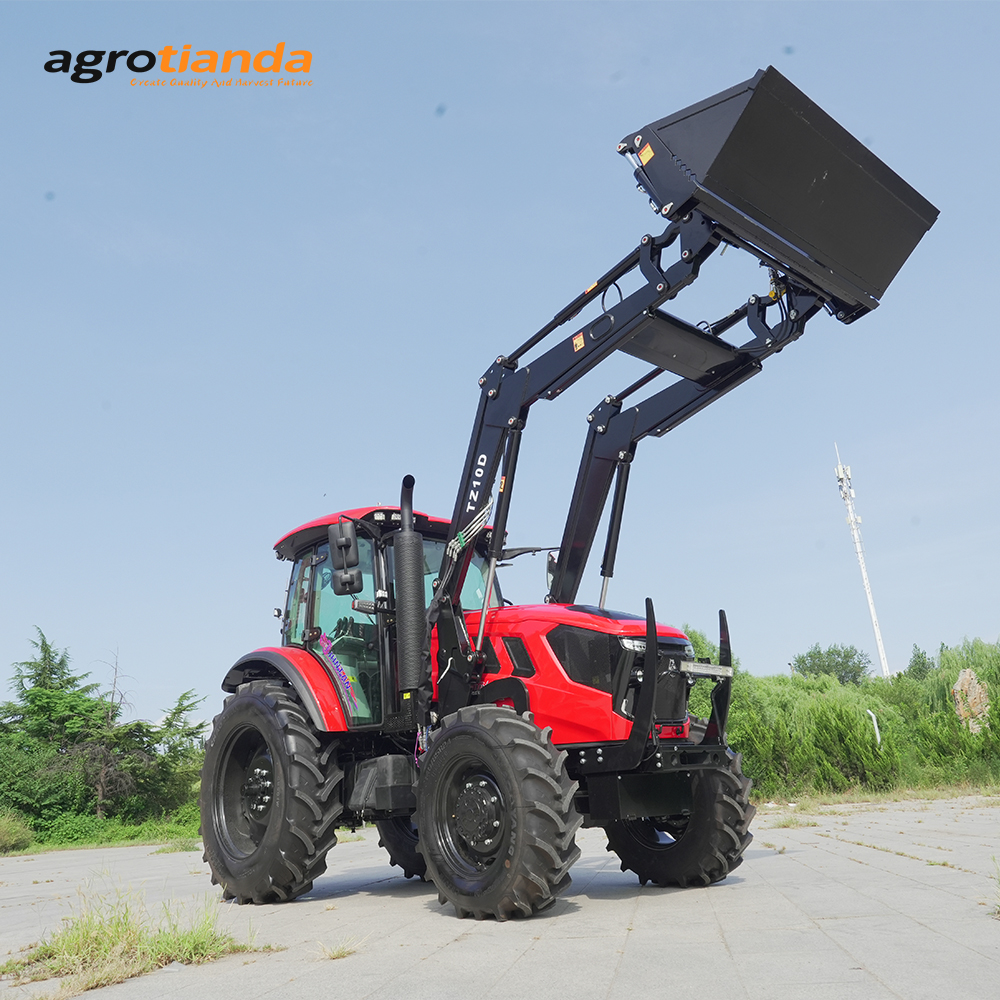

120HP 4WD Tractor with Front-End Loader

The Agrotianda Agrotd1204 is a medium-sized, heavy-duty 120HP 4WD tractor weighing 5200kg. It is powered by a robust 6-cylinder vertical water-cooled diesel engine, features a 200L fuel tank for extended operation, and complies with the Euro II emission standard.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
详情 (1) 详情 (3) 详情 (6)
详情 (5) 详情 (4) 详情 (2)


Model NO.

Agrotianda1204

Type

Wheel Tractor

Usage

Farm Tractor, Garden Tractor

Certification

ISO, SGS

Drive Wheel

4WD

Emission Standard

Euro II

Fuel

Gas / Diesel

Service Life

6-10 Years

Size

Medium

Color

Red

Condition

New

Power

120HP

Engine Brand

4 Cylinder, Diesel, Vertical, Water Cooling

Weight

5200kg

Transport Package

Nude Packing

Specification

4780 x 3120 x 2180mm

Fuel Tank Capacity

200L

Origin

China

HS Code

8701901190

Production Capacity

10000unit/Year


Specification for agrotianda Tractor

Model

TE-504

TB-754

TB-904

4X-1004

TD-1204

TD-1404

Engne Model

XINCHA

XINCHAI

XINCHAI


QUANCHAI

SHANG CHAI

SHANG CHAI

Type

4-Cylinder Vertical,water cooled,4 stroke cycle

6-Cylinder Vertical,water cooled,4 stroke cycle

Construction Mass(kg)

1800

2900

2900

3700

3900

3900

Wheel Bass(mm)

1800

2010

2052

2052

2340

2340

Min Ground Clearance (mm)

308

308

375

375

400

400

Rated Power(kw/hp)

36.7/50

55.1/75

66.2/90

73.5/100

88.2/120

102.9/140

Rated Speed (rpm)

2400

2400

2400

2400

2400

2200

Gear box

8+8

12+12

12+12

12+12

12+12

16+8

Brake

Disc type

Disc type

Disc type

Disc type

Disc type

Disc type

3-Point Suspension

Category:3

Category:3

Category:3

Category:3

Category:3

Category:3

Rotating Speed (rpm)

540/1000

540/1000

540/1000

540/1000

540/1000

540/1000

Production Process and Flow


Packaging and Shipping


OEM/ODM Customization Available

Color

Blue, yellow, red, orange, green, and any custom color of your choice.

Engine Brand

Quanchai,Xinchai,Yuchai,YTO,Shangchai,Yunei

Rated Power (hp)

50-240hp

Tire Tape

Dryland, Paddy Field, Radial (European Standard)—customizable upon request.

Logo

Your exclusive logo can be applied to the tractor body or hood.

1. 120HP Turbocharged Engine: Pure Muscle for Large Farms

Take on the most demanding agricultural and engineering projects with ease. The 120HP high-torque diesel engine is designed for long-duration, high-intensity work.

Massive Power Output: Effortlessly drives large-scale implements, such as 5-bottom plows, heavy seeders, and high-capacity balers.

Euro II Reliability: A robust, mechanical-driven engine that offers high fuel tolerance and simplified maintenance, ensuring maximum uptime in any global region.

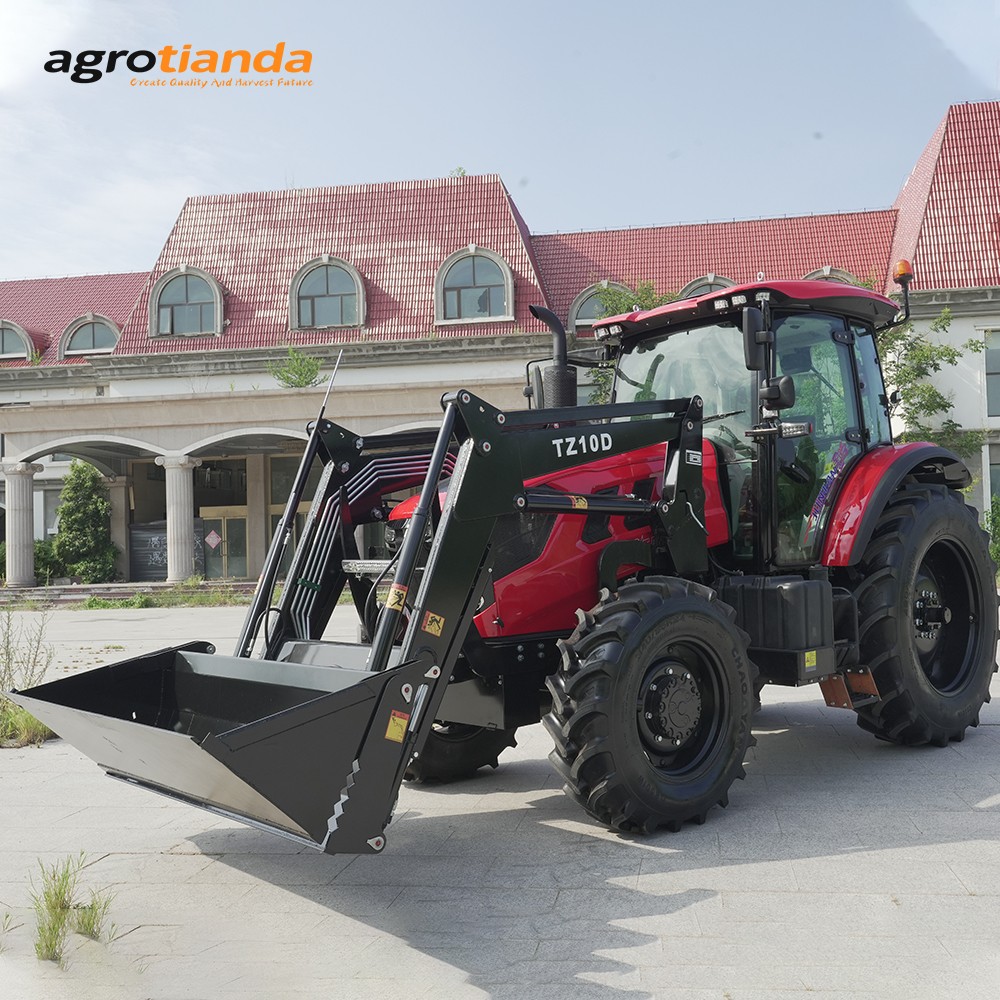

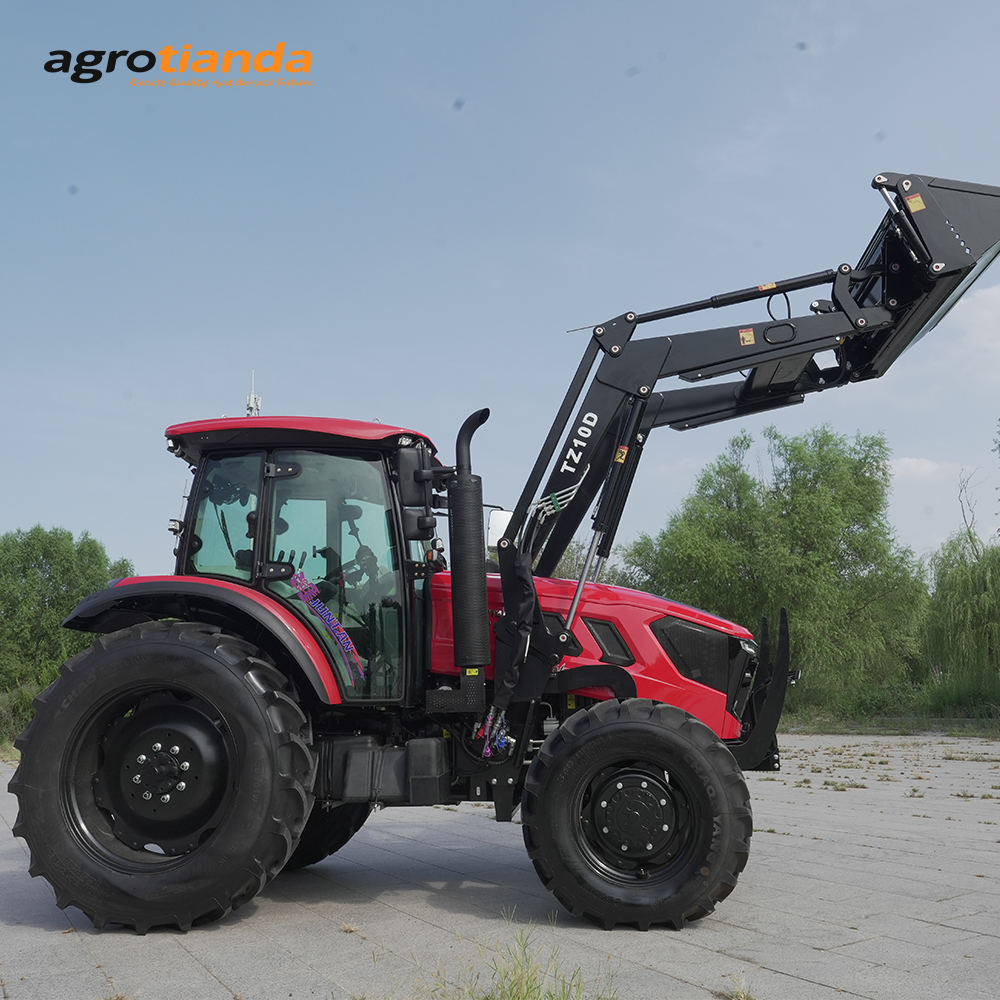

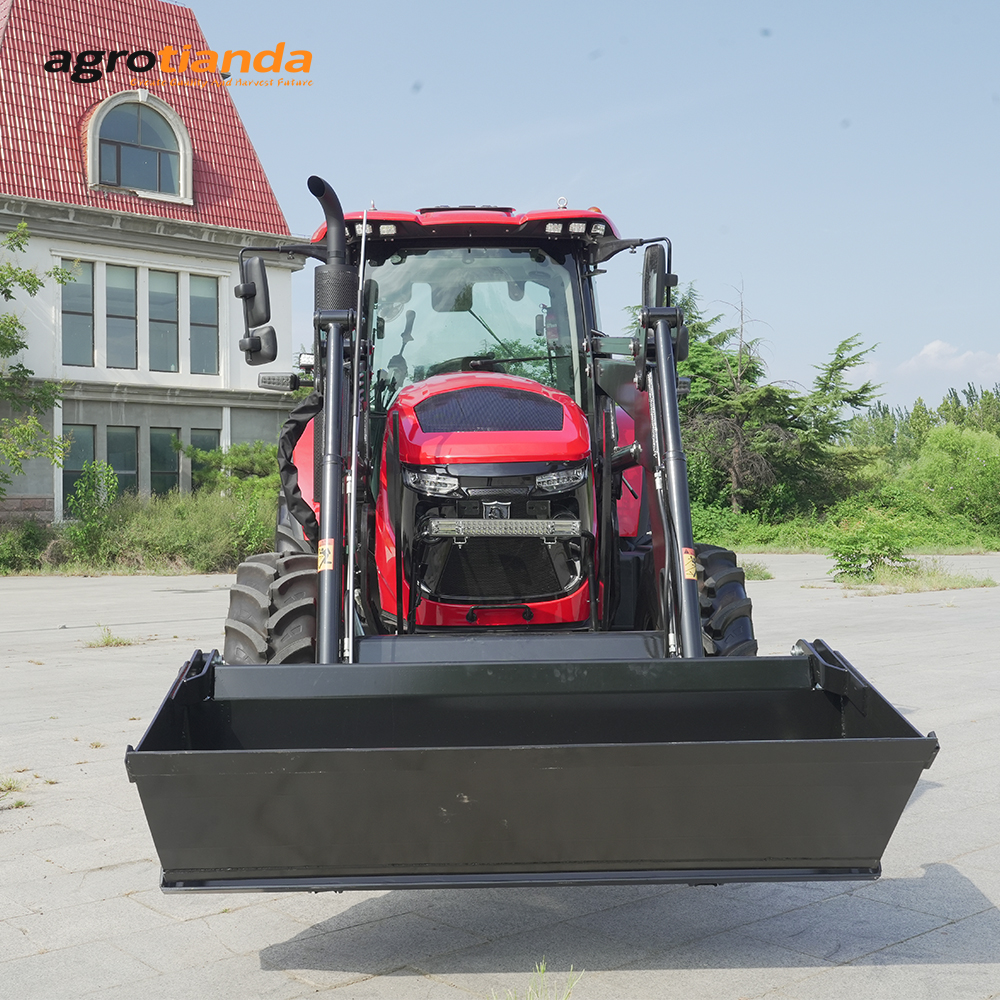

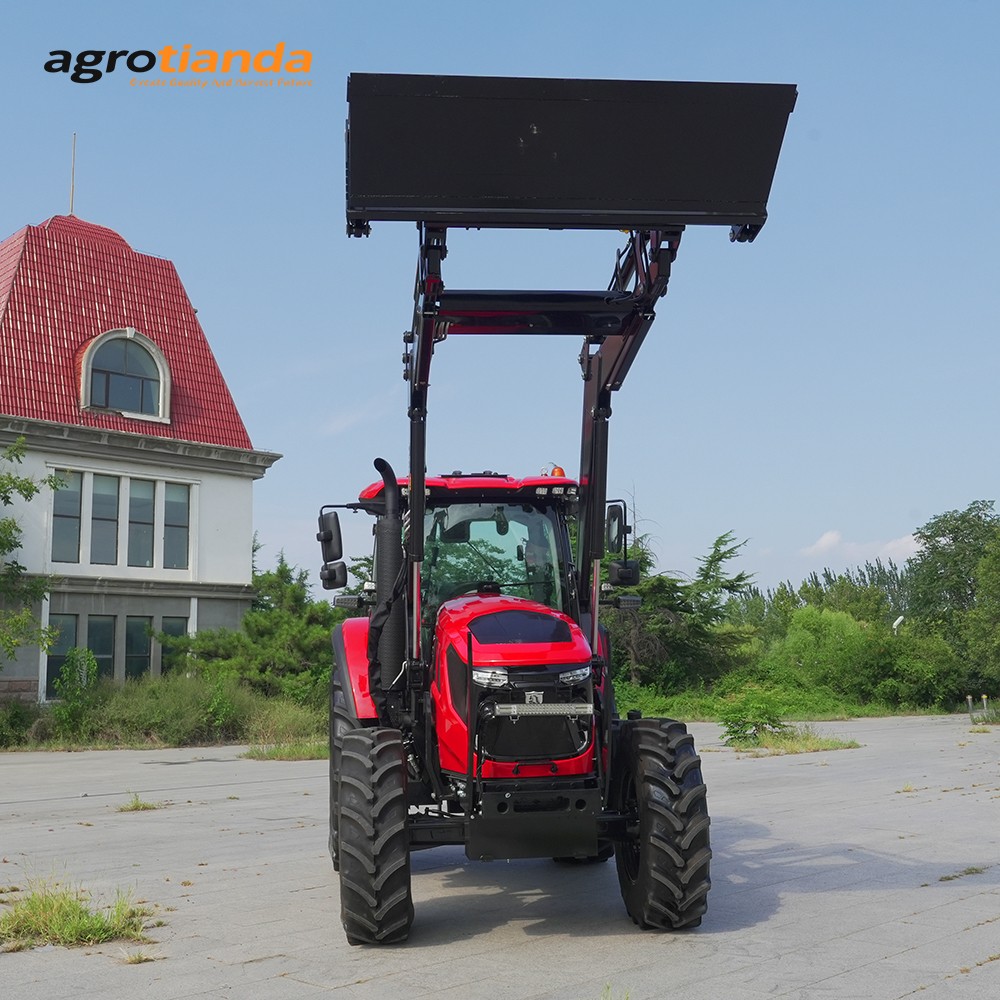

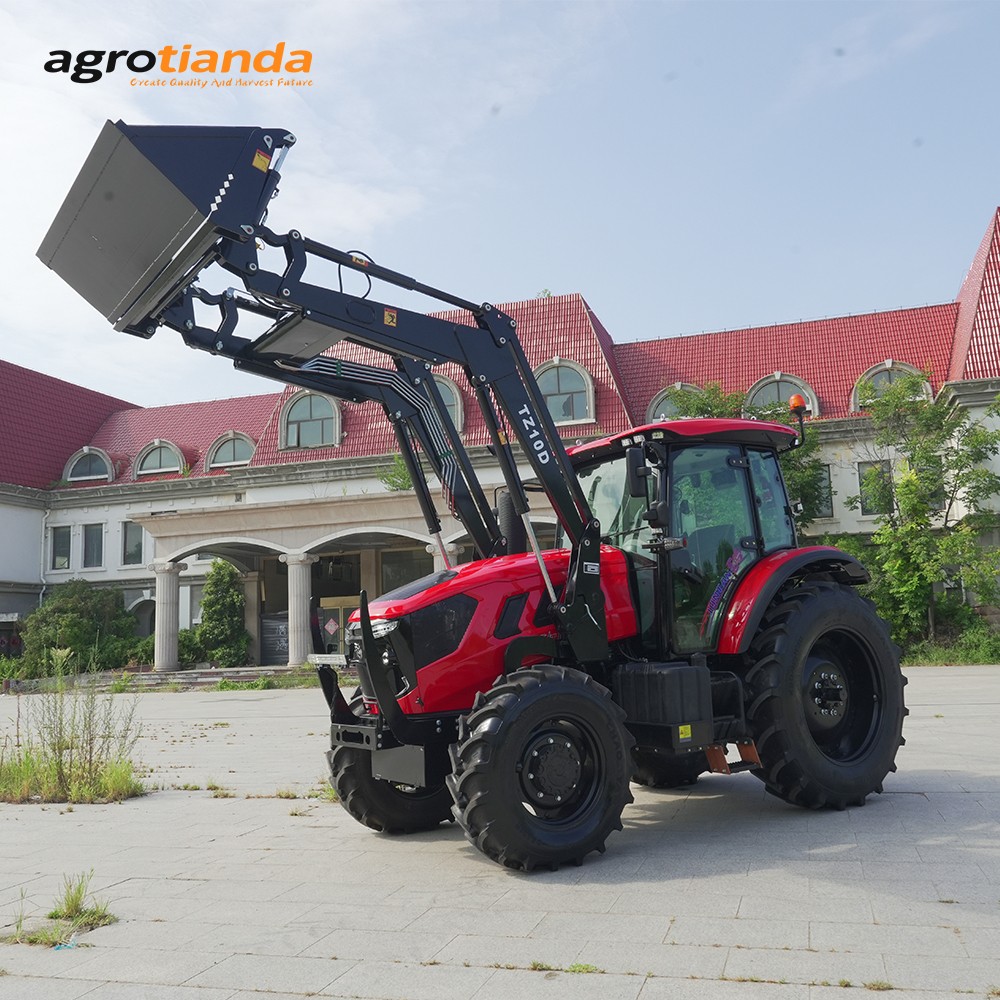

2. Integrated Heavy-Duty Front-End Loader

Transform your tractor into a versatile material handler. Our factory-fitted front loader is engineered for industrial strength.

Superior Lift Capacity: Easily handle bulk materials like grain, soil, gravel, or hay bales with precision hydraulic controls.

Reinforced Structure: Built with high-tensile steel arms and a durable bucket, specifically designed to withstand the stress of repetitive loading tasks.

3. Advanced 4WD System & Reinforced Chassis

Harness every bit of 120HP power through a synchronized 4-wheel drive system that ensures unstoppable traction.

Heavy-Duty Axles: Features industrial-grade front and rear axles to support the added weight of the loader and heavy rear implements.

All-Terrain Dominance: Navigates muddy fields, hillsides, and construction sites with superior flotation and stability.

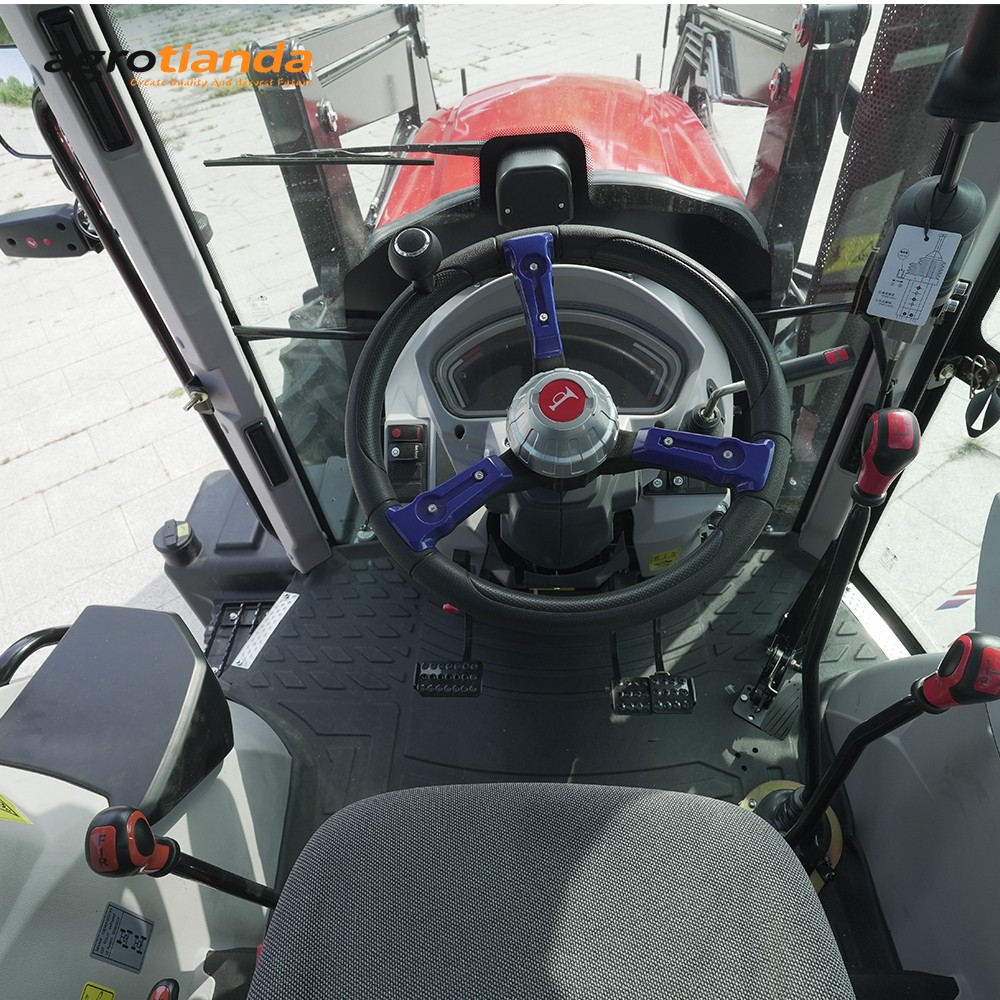

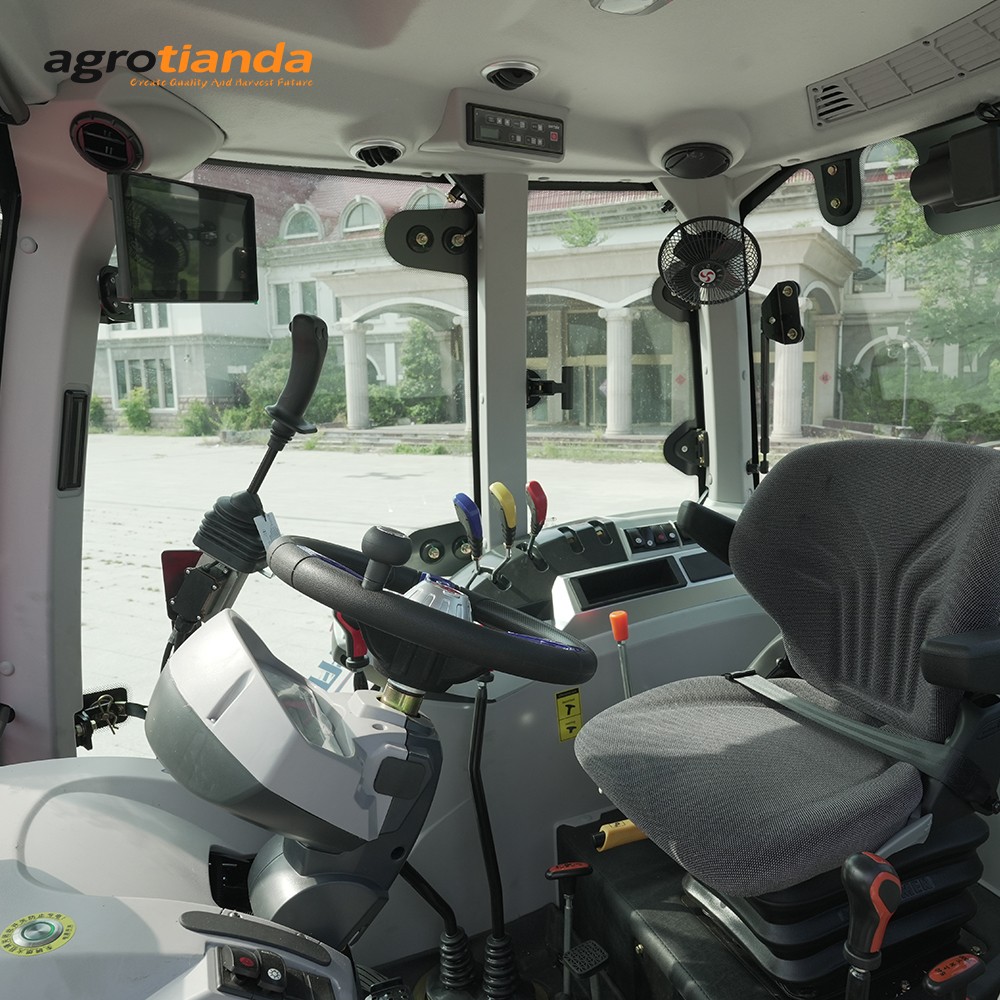

4. All-Weather Luxury Cabin (Sunshade Options Available)

Operator productivity is a priority. Our 120HP series offers a workstation built for professional comfort.

Ergonomic Controls: Intuitive joystick for front loader operation and simplified gear shifting reduce operator fatigue during 10+ hour shifts.

Maximum Visibility: The high-clearance design and large glass area (or open sunshade platform) provide a clear view of both front and rear attachments.

5. Low Maintenance & High Residual Value

We build our 120HP tractors to be a long-term investment for your business.

Easy-Service Design: Quick-access panels allow for rapid filter and oil changes, keeping your machine in the field during critical seasons.

Built to Last: Every component—from the reinforced gearbox to the high-pressure hydraulic pumps—is tested for durability under extreme loads.
