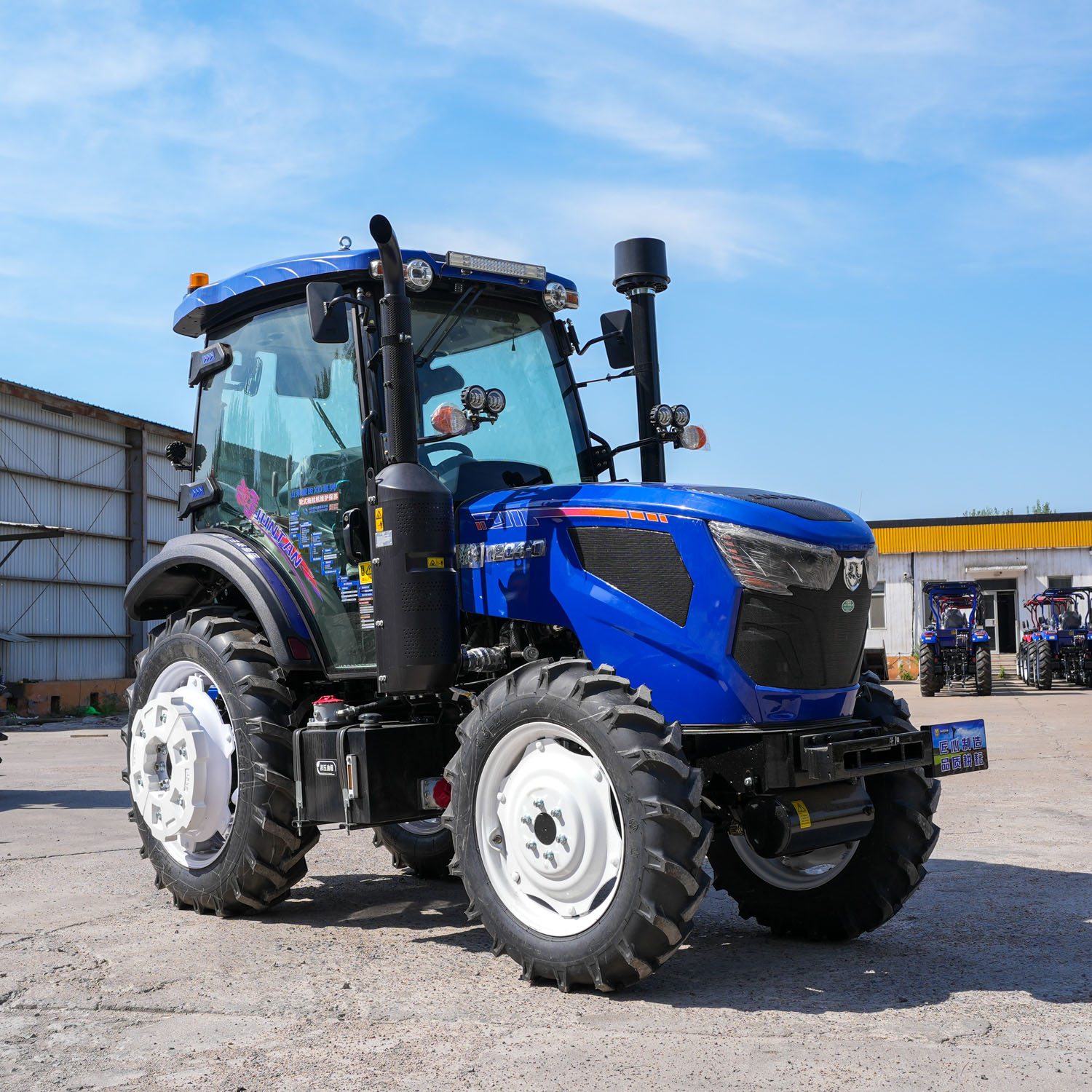

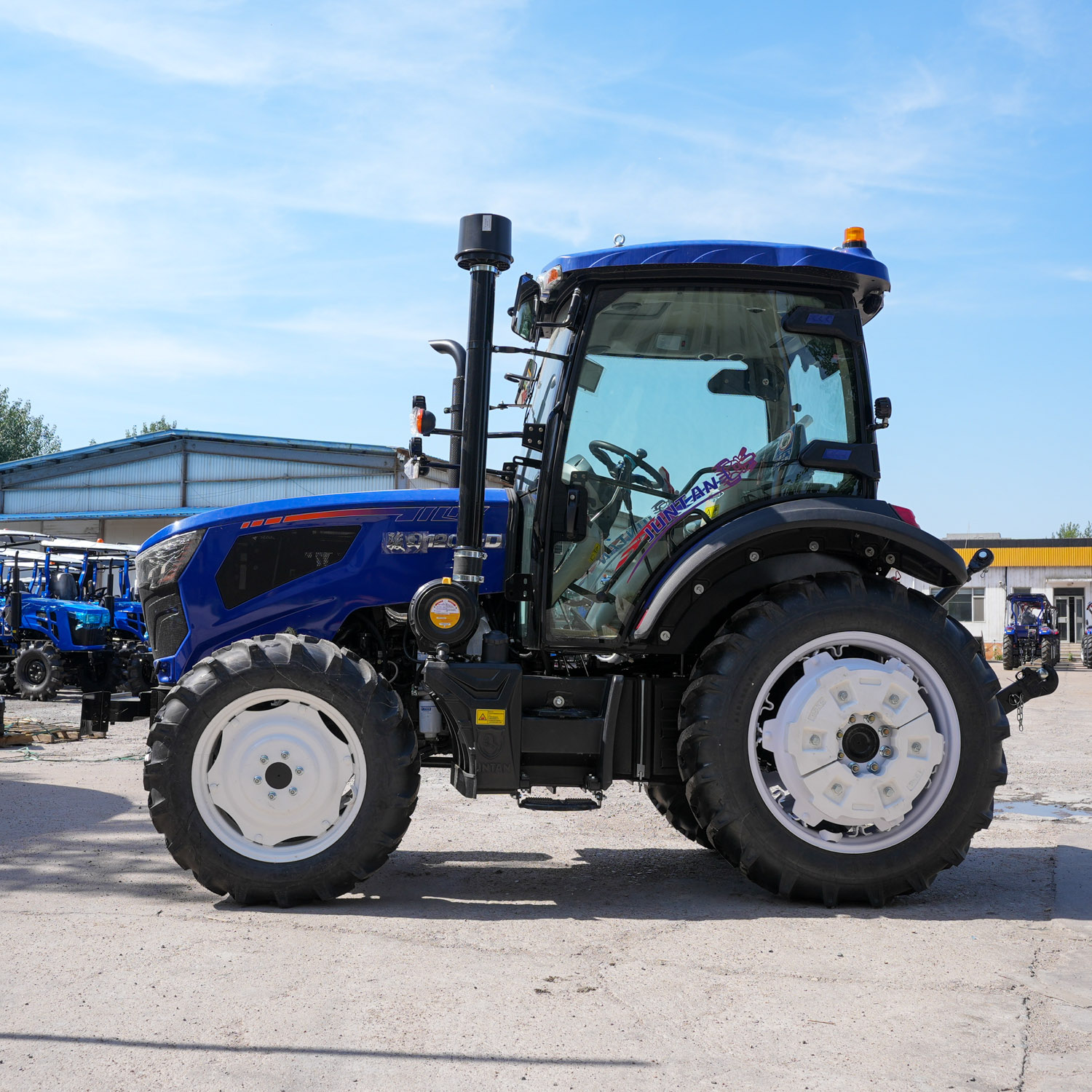

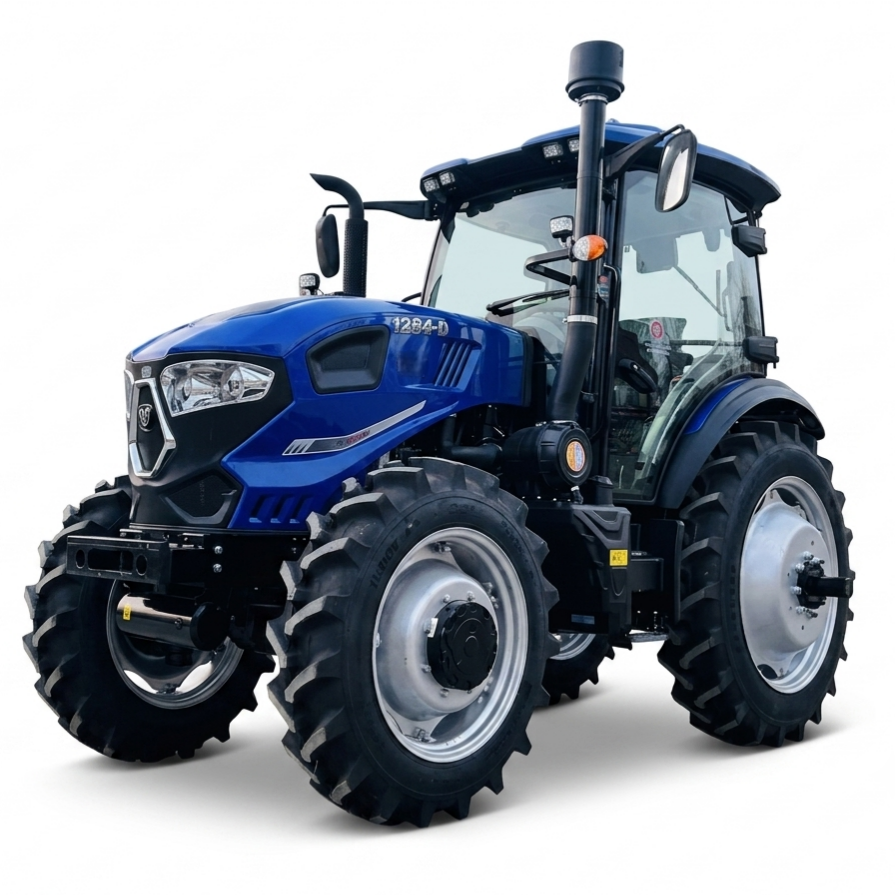

120HP 4WD Agriculture Tractor

The Agrotianda 120HP 4WD tractor is a Large-size agricultural machine designed for heavy-duty farming and landscaping. It features a 6-cylinder vertical water-cooled diesel engine, a 16+8 gearbox, and a Category 3 three-point suspension. With a weight of 4000kg and Euro II emission compliance, it offers durable performance for demanding tasks.
Availability:
Quantity:
Inquiry Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

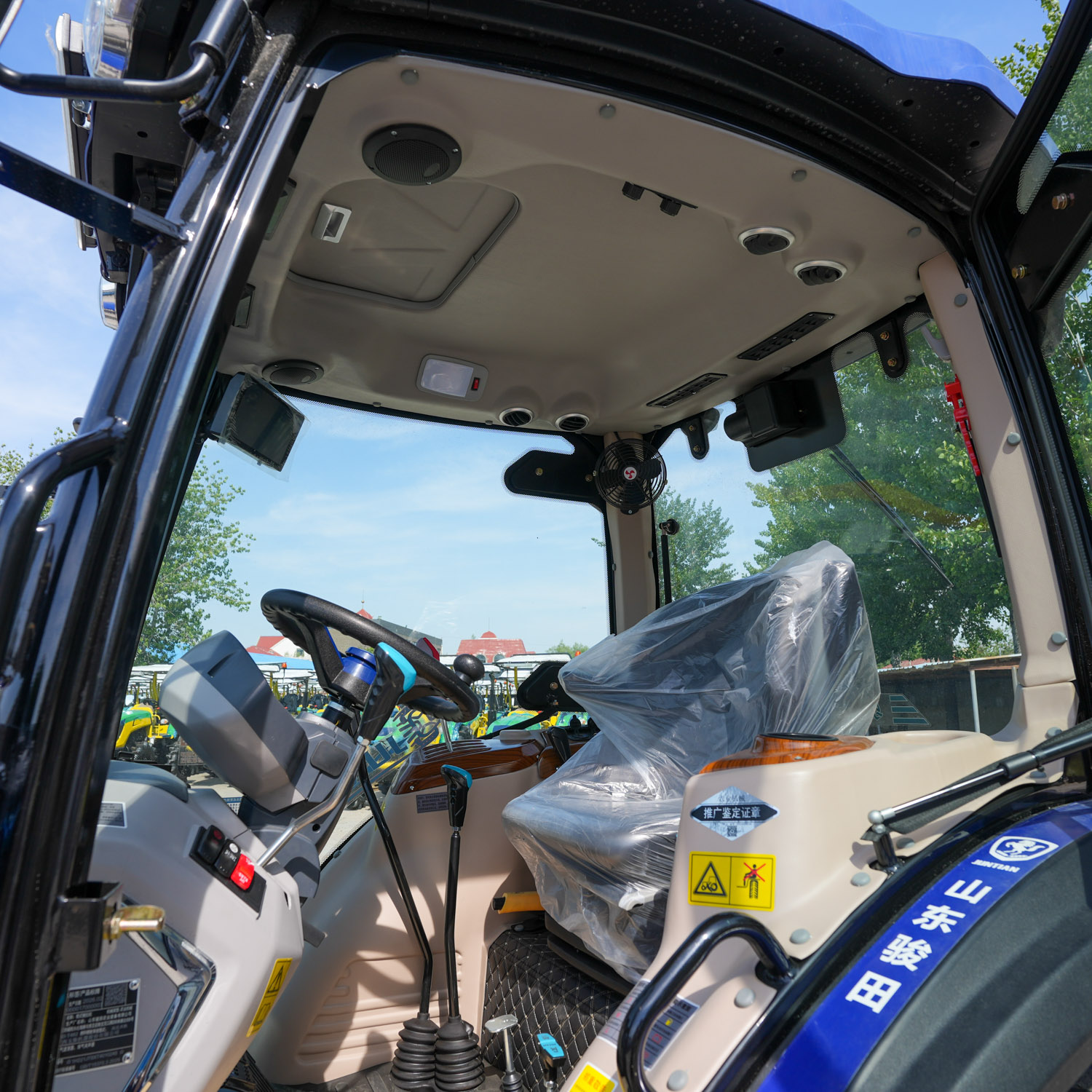

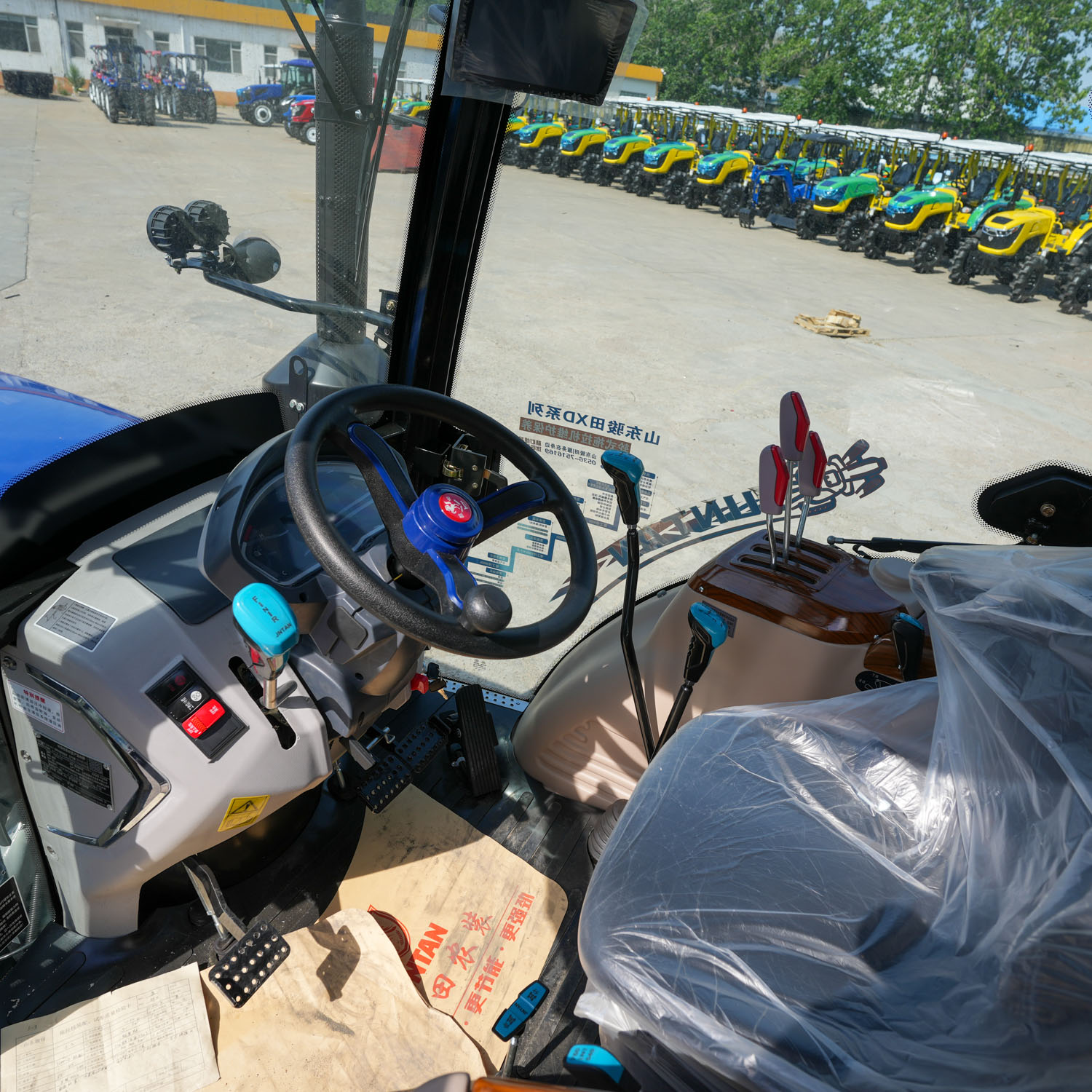

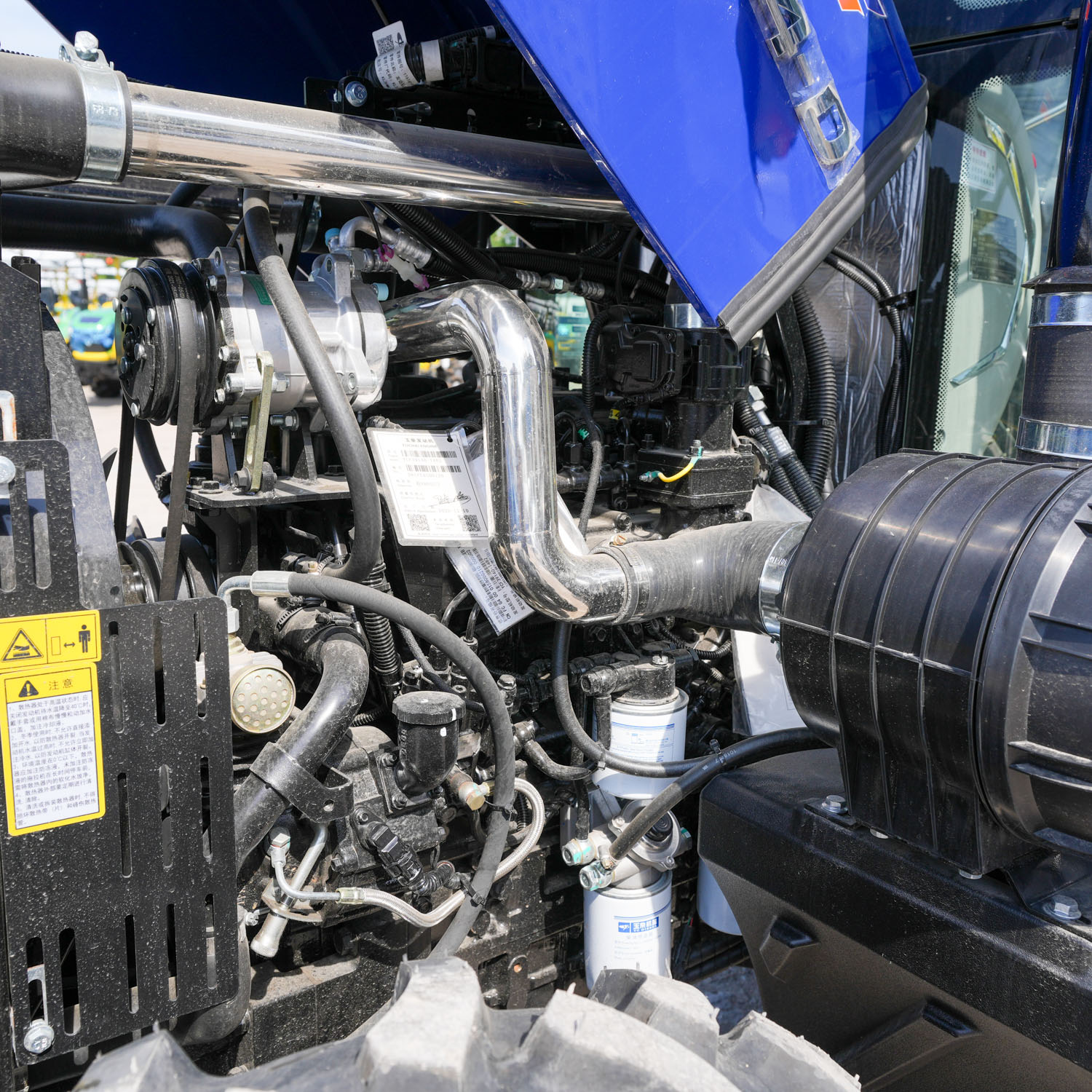

DSC09252 DSC09253 DSC09251

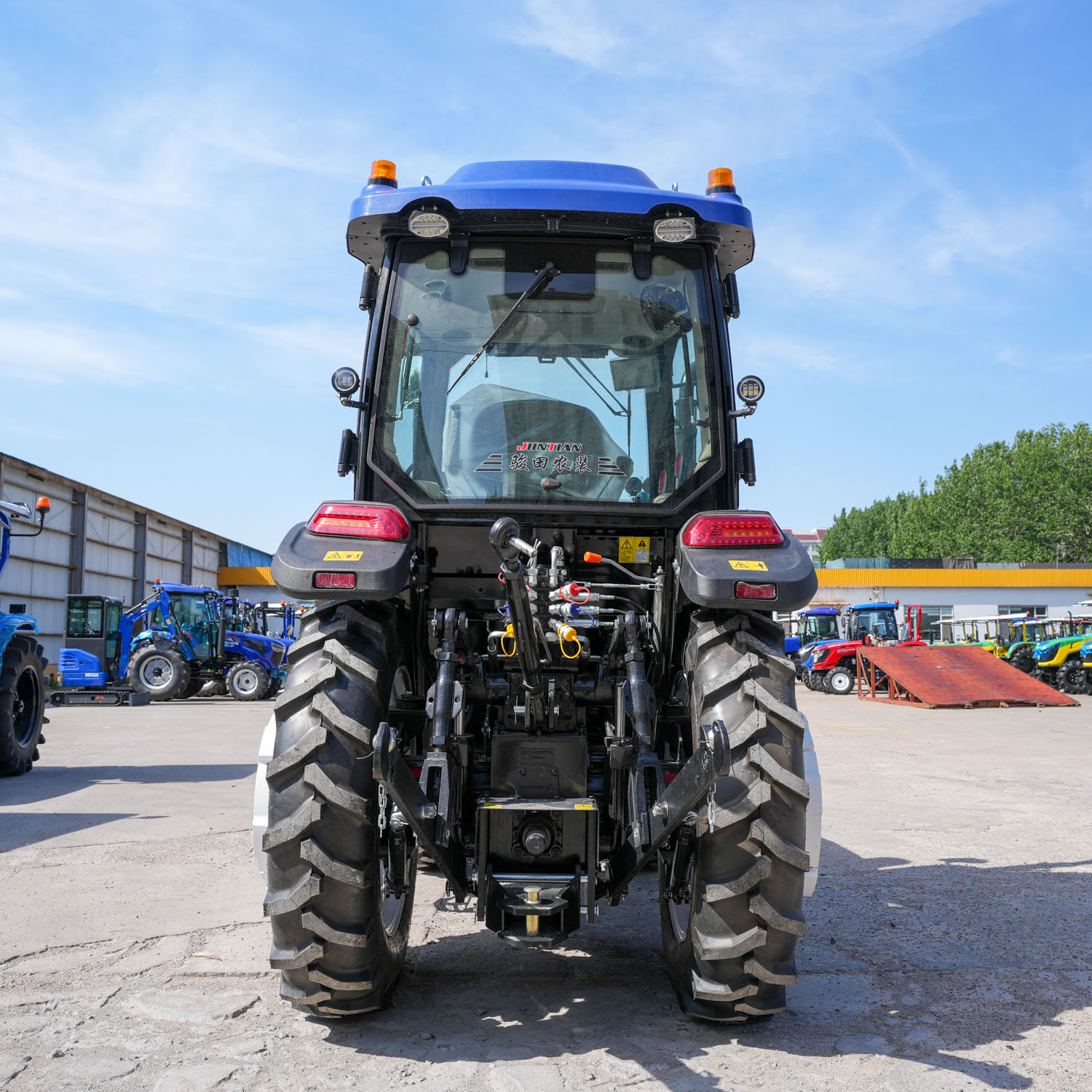

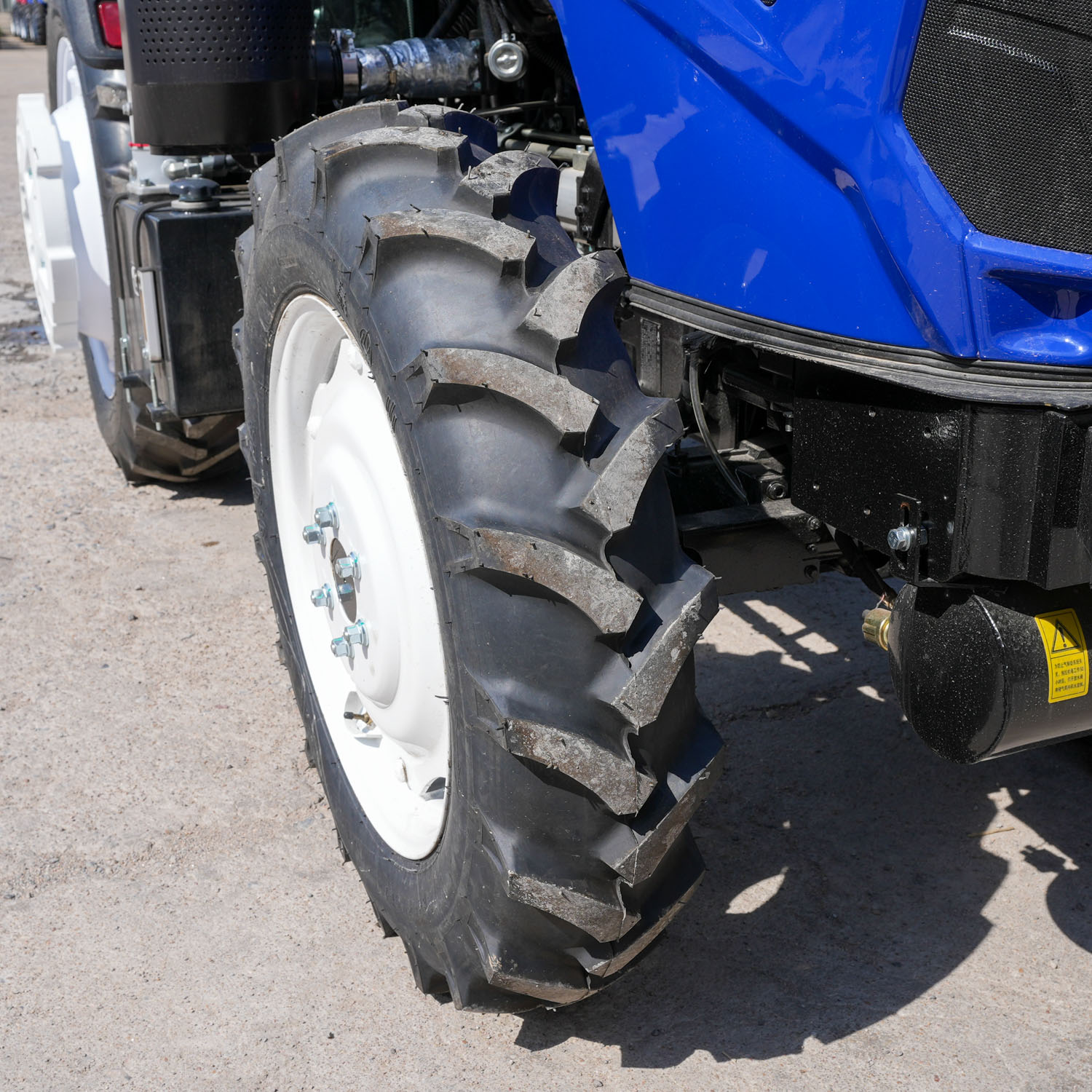

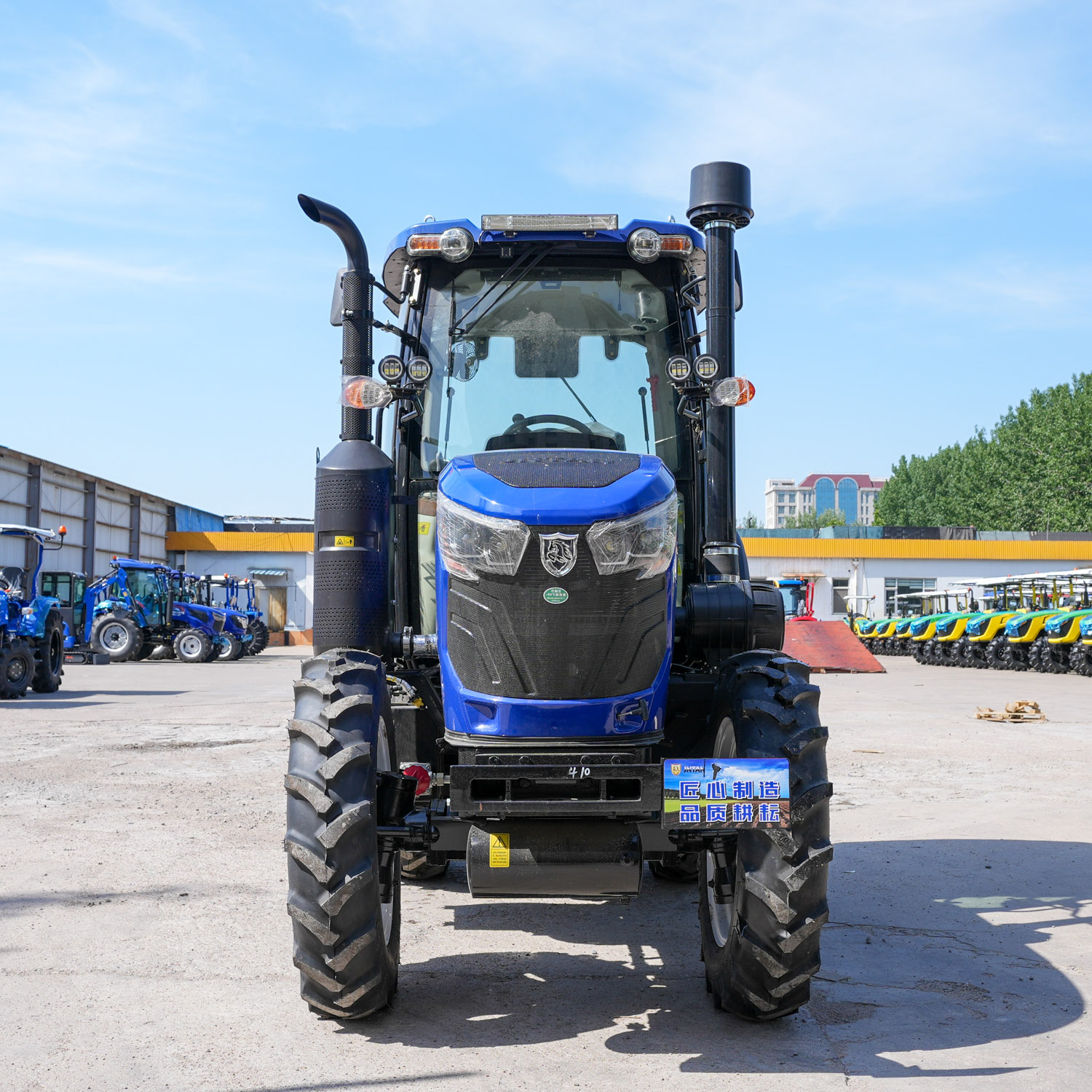

DSC09254 DSC09242 DSC09246


Model NO.

agrotianda504

Type

Wheel Tractor

Usage

Farm Tractor, Garden Tractor

Certification

ISO, SGS

Drive Wheel

4WD

Emission Standard

Euro II

Fuel

Gas / Diesel

Service Life

6-10 Years

Size

Large

Color

Blue

Condition

New

Power

120HP

Engine Brand

4 Cylinder, Diesel, Vertical, Water Cooling

Weight

4000kg

Transport Package

Nude Packing

Specification

5150 x 1980 x 2630mm

Ground Clearance

330mm

Origin

China

HS Code

8701901190

Production Capacity

10000unit/Year


Tractor

Diesel engine

Type

4x4

Model

LR4B5-23

Overall dimensions
(LxWxH)(mm)

4350x2170x2740

Type

Four cylinder,vertical,water cooled,four stroke,direct
injection combustion

Wheelbase(mm)

2314

Displacement(L)

4.95

Min.ground
clearance(mm)

430

Rated
power/speed(Lw)(r/min)

58.8/2300

Min.operating
mass(with safety stand)
(Kg)

3675

Max.torque
(N.m)/speed(r/min)

270/1500-1700

Tyre spec.,front/rear

8.3-24/11-32

Bore x stroke(mm)

108x125

Wheel tread,front/rear

1630-1960/1500-2100

Steering

Full hydraulic

Brake

Oil immersed,disk type

Transmission

Implement

Gear shift
forward/backward

12/4

Three-point linkage category

Three-point linkage category ll

Speed range(Km/h)
forward/backward

1.63-26.82/4.230-12.69

Tilling depth control mode

Combined draft,position control and floating control

PTO rotation speed(r/min)

540/720

Lifting force(KN)

16

Clutch

11-inch,dry,double action


Production Process and Flow


Packaging and Shipping


OEM/ODM Customization Available

Color

Blue, yellow, red, orange, green, and any custom color of your choice.

Engine Brand

Quanchai，Xinchai，Yuchai，YTO，Shangchai，Yunei

Rated Power (hp)

50-240hp

Tire Tape

Dryland, Paddy Field, Radial (European Standard)—customizable upon request.

Logo

Your exclusive logo can be applied to the tractor body or hood.

1. Powerful Engine with Multiple Options

Equipped with a high-performance diesel engine up to 120HP, this tractor delivers strong torque and stable output. Multiple power options (50–140HP) allow you to choose the perfect configuration for different farming needs.

2. 4WD System for Strong Traction

The advanced 4-wheel drive system ensures excellent traction and stability on various terrains. It performs efficiently on muddy fields, slopes, and rough farmland, improving productivity in challenging conditions.

3. Efficient Transmission & Smooth Operation

Featuring a multi-gear transmission system (up to 12+12 gears), the tractor provides smooth shifting and flexible speed control. This enhances working efficiency and makes operation easier across different tasks.

4. Versatile & Multi-Application Use

Designed for farming, landscaping, orchards, and transportation, this tractor supports a wide range of implements. Its adaptability makes it ideal for both small farms and large-scale agricultural operations.
